SEAFLO non-automatic 2000GPH bilge pumps offer standard action activated by a panel or float switch.Small size, high efficiency, low current (low cost switching power supply supporting).Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.Availalble for DC 12 Voltage & 24 Voltage.

MORE FEATURES

- 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
- Traditional operation by switch or float switch
- Entirely submersible

- Snap-off strainer base for easy maintenance

- Pump and switch are stand alone products

- Sealed efficient,long life motors

- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft

- Anti-Airlock protection

- Exclusive moisture tight seals

- Marine grade blocked wiring

STANDARD PUMP CONFIGURATIONS

Model	Flow Rate	Voltage	Max Draw	Fuse Amps	Head	Wire Lead	Outlet Dia	N.W. / G.W.
SFBP1-G2000-01	1576 GPH	12 V	14.0 A	14.0 A	11.8' (3.6 m)	3' (1 m)	1-1/8"	1.13/1.21 kg

PERFORMANCE

Voltage(V)	Current(A)	Flow		Head(M)
Voltage(V)	Current(A)	GPH	LPH	Head(M)
OPEN	6.9	1576	5964	0
12	7.49	1288	4874	0.5
12	8.83	945	3576	1
12	10.25	711	2691	1.5
12	11.3	538	2036	2
12	12.18	238	901	2.5
12	12.94	155	587	3
12	14	0	0	3.6

Voltage(V)	Current(A)	Flow		Head(M)
Voltage(V)	Current(A)	GPH	LPH	Head(M)
OPEN	3.68	1626	6153	0
24	4.29	1305	4938	0.5
24	5.06	988	3739	1
24	5.74	742	2808	1.5
24	6.26	569	2153	2
24	6.83	264	999	2.5
24	7	188	711	3
24	8.1	0	0	3.6

PERFORMANCE

Key	Description	Quantity
1	Wire Buckle	1
2	Pump Housing	1
3	Motor	1
4	Seal Base	1
5	Seal	1
6	Motor Bracket	1
7	Impeller	1
8	Pump Cover	1
9	Tapping Screw	6
10	Strainer	1

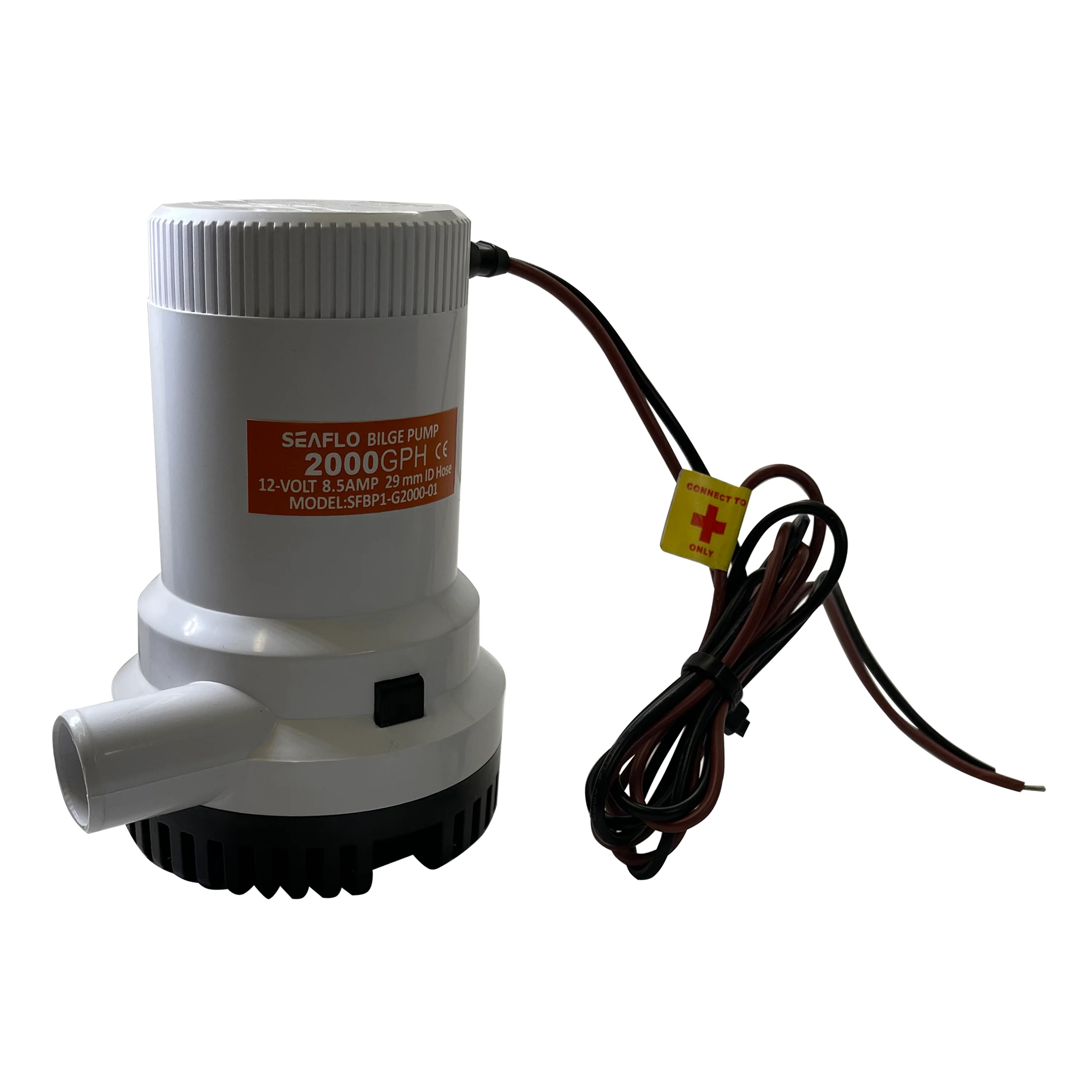

SEAFLO 01 Series 2000GPH Seaflo Marine Boat Engine Bilge Pump
