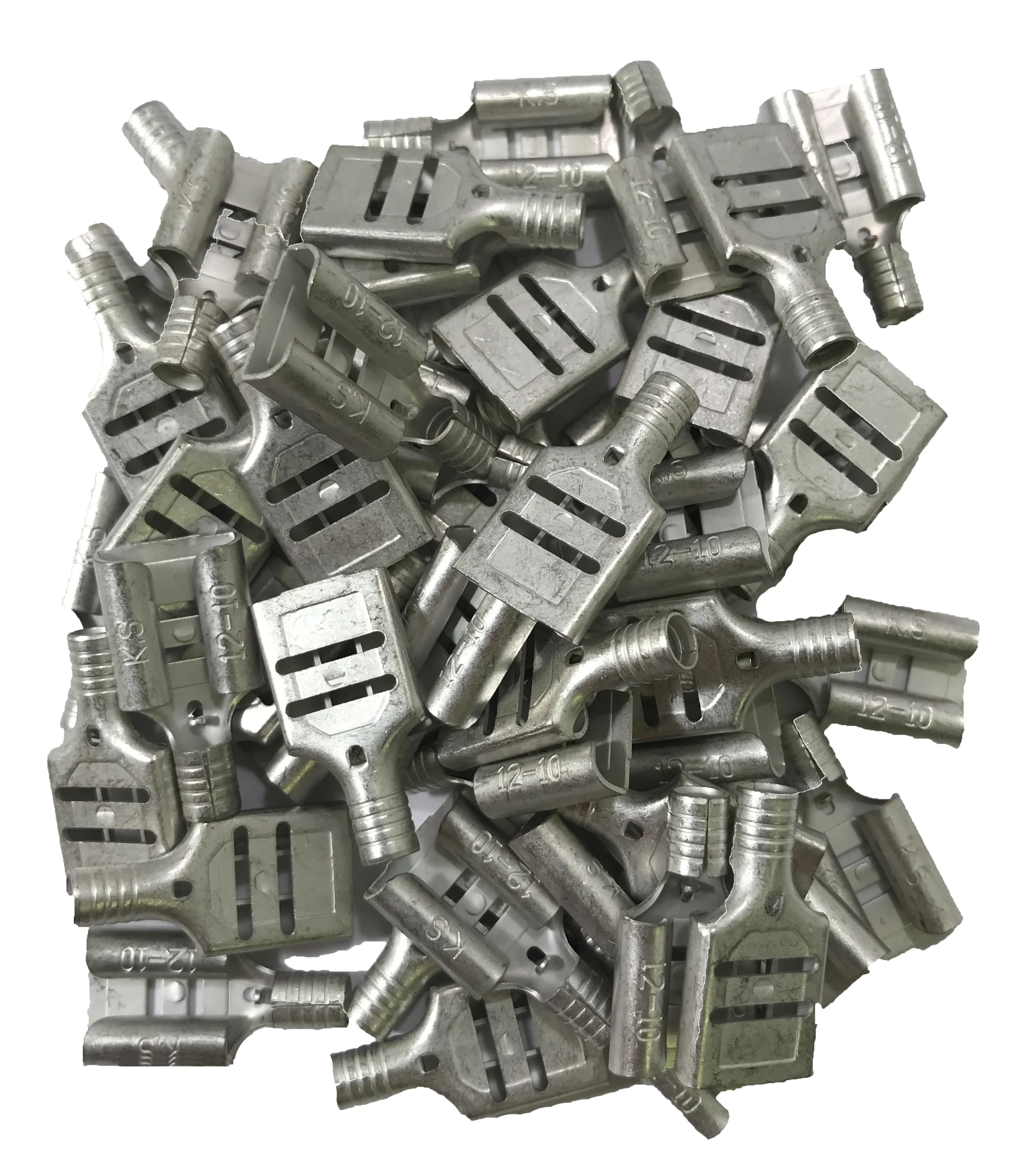

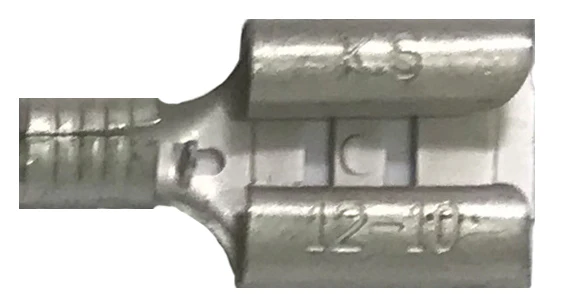

These 12–10 AWG non-insulated female quick disconnect terminals with a .375" tab are built for high-reliability crimp connections in demanding electrical systems. Each terminal is precision-formed from pure copper (Alloy 110), annealed for ductility, and electro tin-plated for enhanced corrosion resistance. A brazed seam and V-groove serrations provide superior tensile strength and optimal electrical conductivity.
Specifications & Features
- Wire Gauge: 12–10 AWG
- Terminal Type: Non-insulated female quick disconnect
- Tab Size: .375" (3/8")
- Material: Pure copper (Alloy 110), annealed
- Plating: Electro tin-plated for corrosion resistance
- Termination Type: Crimp
- Seam Type: Brazed barrel for mechanical durability
- Serration Design: V-groove enhances conductivity and crimp retention
- Voltage Rating: 600V
- Temperature Rating: 230°F (110°C)
- Wire size stamped for easy identification
- Complies with: MIL-T-10727C Type 1 and ASTM B545 plating specs (.0001–.00025")
- Certifications: cULus listed
- Made in USA
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
These 12–10 AWG non-insulated female quick disconnect terminals with a .375" tab are built for high-reliability crimp connections in demanding electrical systems. Each terminal is precision-formed from pure copper (Alloy 110), annealed for ductility, and electro tin-plated for enhanced corrosion resistance. A brazed seam and V-groove serrations provide superior tensile strength and optimal electrical conductivity.
Specifications & Features
- Wire Gauge: 12–10 AWG
- Terminal Type: Non-insulated female quick disconnect
- Tab Size: .375" (3/8")
- Material: Pure copper (Alloy 110), annealed
- Plating: Electro tin-plated for corrosion resistance
- Termination Type: Crimp
- Seam Type: Brazed barrel for mechanical durability
- Serration Design: V-groove enhances conductivity and crimp retention
- Voltage Rating: 600V
- Temperature Rating: 230°F (110°C)
- Wire size stamped for easy identification
- Complies with: MIL-T-10727C Type 1 and ASTM B545 plating specs (.0001–.00025")
- Certifications: cULus listed
- Made in USA
