$6.15
Original: $20.49
-70%12 Point Power Distribution Block Terminal Busbar with Red Cover & Insulator Boot - 1/4" Post—
$20.49
$6.15The Story

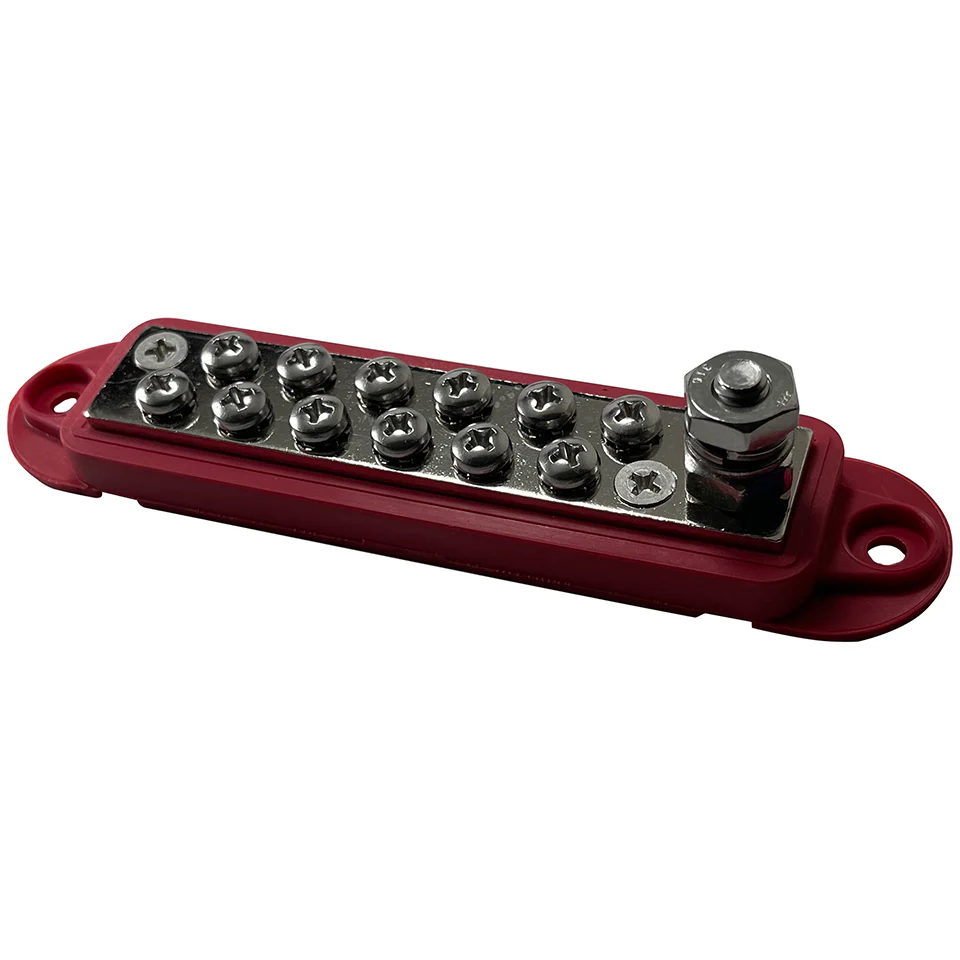

12 Point Power Distribution Block Terminal Busbar.
Low-cost and flexible, the 12 point terminal busbar offers (12) 15amp connections, with a single 1/4" connection post. The 12 point busbar can be used with a cover, protecting the connection points and complying with industry safety requirements. This system allows for up to 12 electrical connections, each running up to 15 amps continuous. With the optional terminal insulators, the assembly complies with USCG, ISO and ABYC standards requirements.
- 12 connection points, #8-32 stainless steel screws
- Amperage:
- Max continuous: 180 amps @ 12 vdc - 15 amps per connection
- Max intermittent: 20 amps per connection (less than 1 minute)
- Max voltage: 48vdc
- 1/4" stainless steel terminal post
- Stainless steel hex nuts and lock washer
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.66 in

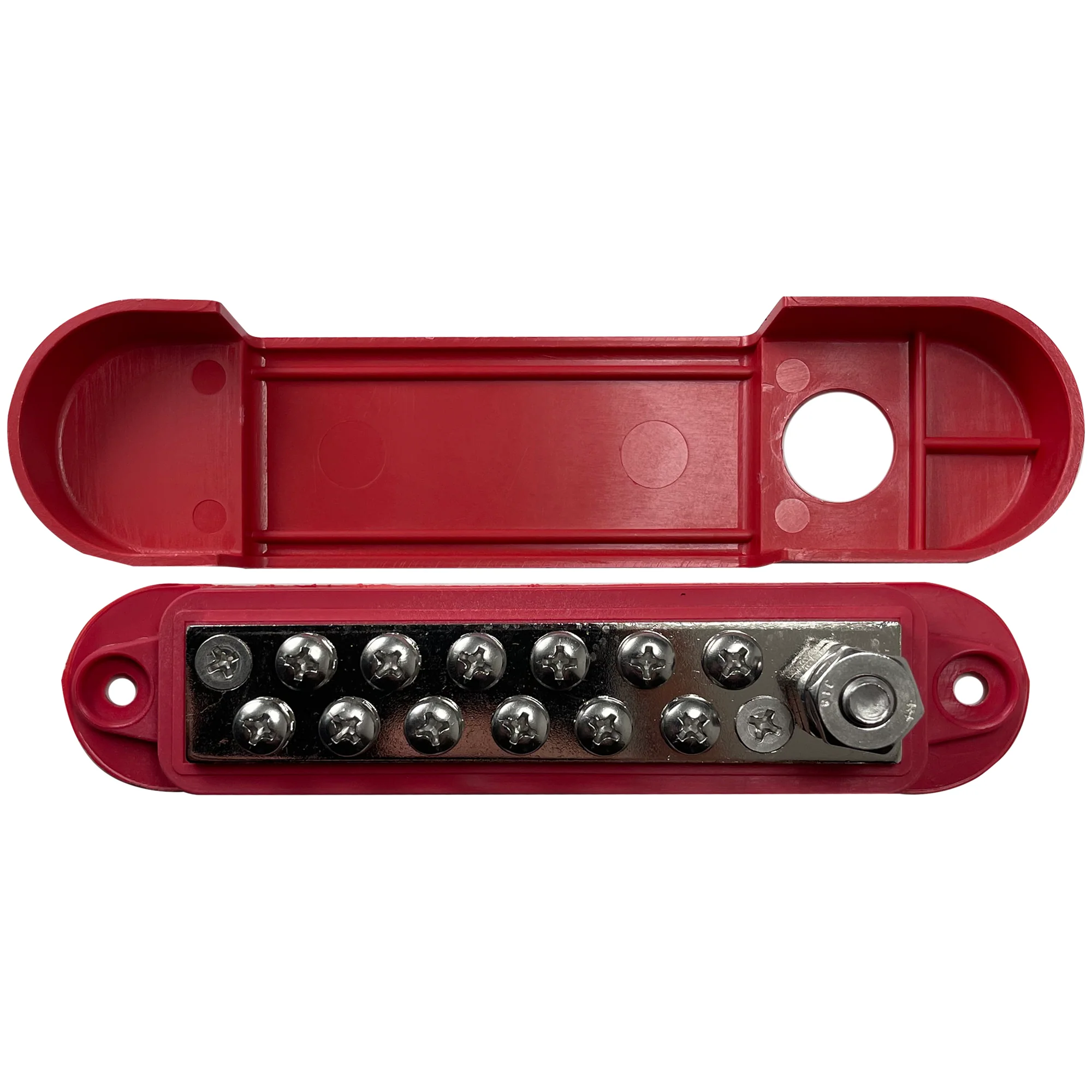

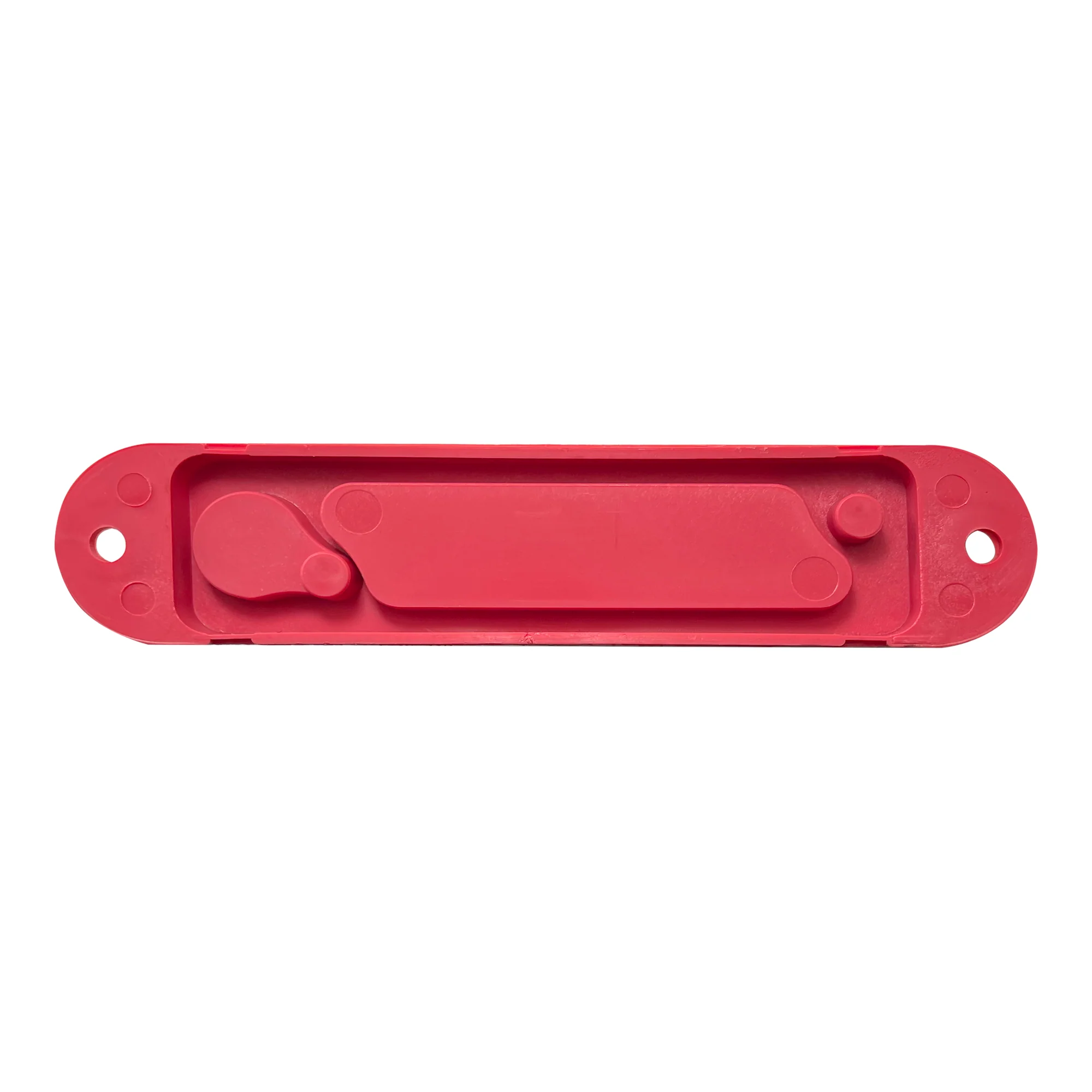

- Shown with included 218 Series terminal insulator and 312 Series 12-point terminal insulator (cover)
- When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
12 Point Power Distribution Block Terminal Busbar.
Low-cost and flexible, the 12 point terminal busbar offers (12) 15amp connections, with a single 1/4" connection post. The 12 point busbar can be used with a cover, protecting the connection points and complying with industry safety requirements. This system allows for up to 12 electrical connections, each running up to 15 amps continuous. With the optional terminal insulators, the assembly complies with USCG, ISO and ABYC standards requirements.
- 12 connection points, #8-32 stainless steel screws
- Amperage:
- Max continuous: 180 amps @ 12 vdc - 15 amps per connection
- Max intermittent: 20 amps per connection (less than 1 minute)
- Max voltage: 48vdc
- 1/4" stainless steel terminal post
- Stainless steel hex nuts and lock washer
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.66 in
- Shown with included 218 Series terminal insulator and 312 Series 12-point terminal insulator (cover)
- When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H
