Non-Insulated Wire Terminal Connector Assortment Kit - 1200 Pieces - Made in USA

This 1200-piece non-insulated terminal kit is ideal for professional electrical and fleet maintenance operations, offering a wide range of crimp-style connectors including ring, butt, quick disconnect, and spade terminals. Made from pure copper (Alloy 110) and electro tin-plated for exceptional corrosion resistance, each terminal features brazed barrel seams and "V" groove serrations to enhance contact and tensile strength after crimping.

Specifications & Features

• All terminals are made from pure copper (Alloy 110) and annealed for strength
• Electro tin-plating resists corrosion in demanding environments
• Brazed barrel seams provide added mechanical integrity during crimping
• "V" groove serrations ensure maximum electrical contact and pull-out strength
• Each terminal is clearly marked with its gauge size for easy identification
• Rated for 600 volts and up to 230°F operating temperature
• Complies with MIL-T-10727C Type 1 and ASTM B 545 B (.0001–.00025" tin thickness)
• Certified to cULus standards
• Termination style: Crimp
• Made in the USA

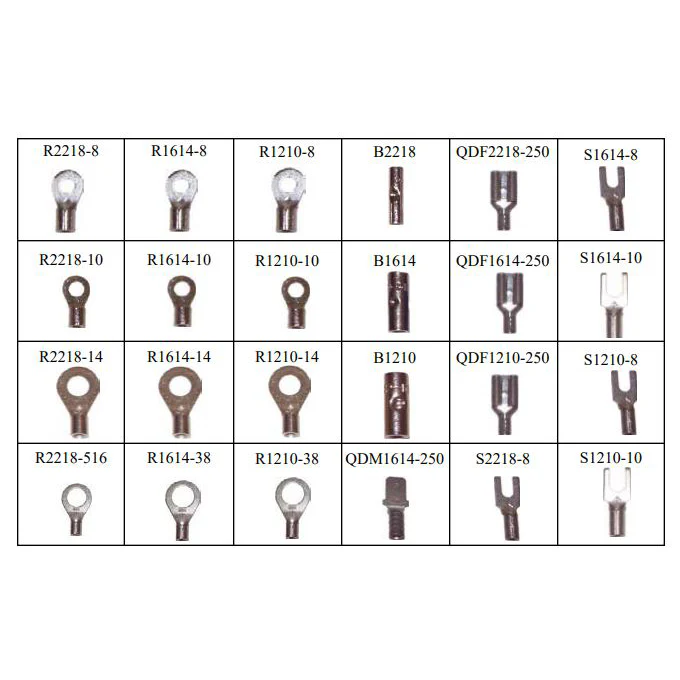

Kit Contents

• 50 – Non-Insulated Ring Terminal 22-18 Gauge #8 Stud (R2218-8)
• 50 – Non-Insulated Ring Terminal 22-18 Gauge #10 Stud (R2218-10)
• 50 – Non-Insulated Ring Terminal 22-18 Gauge 1/4" Stud (R2218-14)
• 50 – Non-Insulated Ring Terminal 22-18 Gauge 5/16" Stud (R2218-516)
• 50 – Non-Insulated Ring Terminal 16-14 Gauge #8 Stud (R1614-8)
• 50 – Non-Insulated Ring Terminal 16-14 Gauge #10 Stud (R1614-10)
• 50 – Non-Insulated Ring Terminal 16-14 Gauge 1/4" Stud (R1614-14)
• 50 – Non-Insulated Ring Terminal 16-14 Gauge 3/8" Stud (R1614-38)
• 50 – Non-Insulated Ring Terminal 12-10 Gauge #8 Stud (R1210-8)
• 50 – Non-Insulated Ring Terminal 12-10 Gauge #10 Stud (R1210-10)
• 50 – Non-Insulated Ring Terminal 12-10 Gauge 1/4" Stud (R1210-14)
• 50 – Non-Insulated Ring Terminal 12-10 Gauge 3/8" Stud (R1210-38)

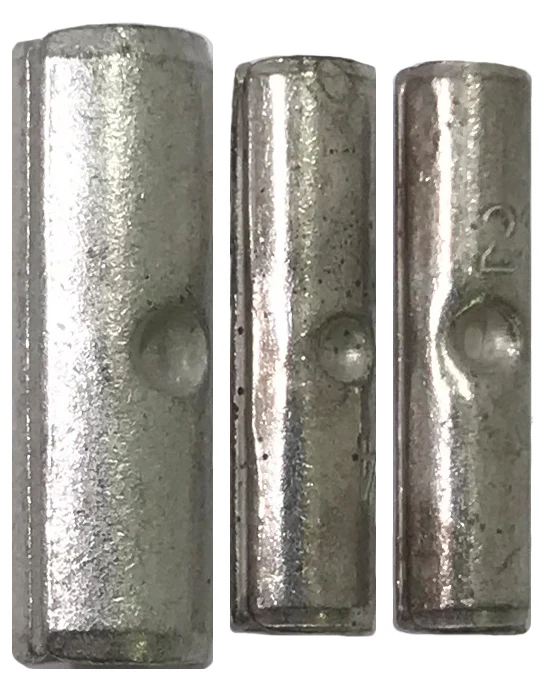

• 50 – Non-Insulated Butt Connector 12-10 Gauge (B1210)
• 50 – Non-Insulated Butt Connector 16-14 Gauge (B1614)
• 50 – Non-Insulated Butt Connector 22-18 Gauge (B2218)
• 50 – Non-Insulated Male Quick Disconnect 16-14 Gauge 0.250" Tab (QDM1614-250)
• 50 – Non-Insulated Female Quick Disconnect 22-18 Gauge 0.250" Tab (QDF2218-250)
• 50 – Non-Insulated Female Quick Disconnect 16-14 Gauge 0.250" Tab (QDF1614-250)
• 50 – Non-Insulated Female Quick Disconnect 12-10 Gauge 0.250" Tab (QDF1210-250)
• 50 – Non-Insulated Spade Terminal 22-18 Gauge #8 Stud (S2218-8)
• 50 – Non-Insulated Spade Terminal 16-14 Gauge #8 Stud (S1614-8)
• 50 – Non-Insulated Spade Terminal 16-14 Gauge #10 Stud (S1614-10)
• 50 – Non-Insulated Spade Terminal 12-10 Gauge #8 Stud (S1210-8)
• 50 – Non-Insulated Spade Terminal 12-10 Gauge #10 Stud (S1210-10)
