Original: $7.99
-70%$7.99
$2.40The Story

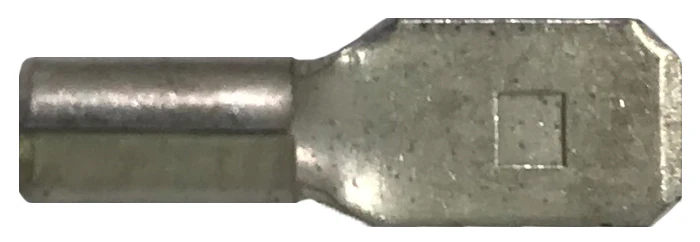

These 16–14 AWG non-insulated male quick disconnect terminals are engineered for high-integrity crimp connections in automotive, industrial, and electrical systems. Constructed from annealed pure copper (Alloy 110) and electro tin-plated, these terminals deliver excellent conductivity and corrosion resistance. The brazed barrel seams and V-groove serrations ensure reliable tensile strength and consistent electrical contact after installation.
Specifications & Features
- Wire Gauge: 16–14 AWG
- Tab Size: .187" (3/16")
- Terminal Type: Non-insulated male quick disconnect
- Material: Pure copper (Alloy 110), annealed
- Plating: Electro tin-plated
- Termination Type: Crimp
- Seam Type: Brazed barrel
- Serration Design: V-groove serrations improve mechanical retention and conductivity
- Voltage Rating: 600 Volts
- Temperature Rating: Up to 230°F (110°C)
- Certifications: cULus listed
- Markings: Terminals are clearly stamped for wire size identification
- Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
- Made in USA
Description
These 16–14 AWG non-insulated male quick disconnect terminals are engineered for high-integrity crimp connections in automotive, industrial, and electrical systems. Constructed from annealed pure copper (Alloy 110) and electro tin-plated, these terminals deliver excellent conductivity and corrosion resistance. The brazed barrel seams and V-groove serrations ensure reliable tensile strength and consistent electrical contact after installation.
Specifications & Features
- Wire Gauge: 16–14 AWG
- Tab Size: .187" (3/16")
- Terminal Type: Non-insulated male quick disconnect
- Material: Pure copper (Alloy 110), annealed
- Plating: Electro tin-plated
- Termination Type: Crimp
- Seam Type: Brazed barrel
- Serration Design: V-groove serrations improve mechanical retention and conductivity
- Voltage Rating: 600 Volts
- Temperature Rating: Up to 230°F (110°C)
- Certifications: cULus listed
- Markings: Terminals are clearly stamped for wire size identification
- Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
- Made in USA
