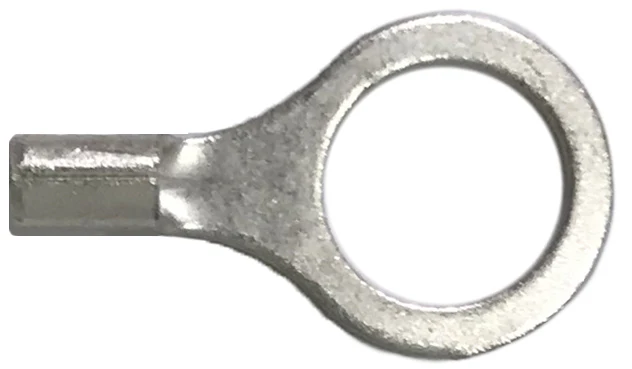

These 22-18 AWG non-insulated ring terminals are engineered from annealed pure copper (Alloy 110) and feature an electro tin-plated finish for superior conductivity and corrosion resistance. Designed for secure, high-performance crimping, each terminal includes brazed barrel seams and internal V-groove serrations that maximize tensile strength and electrical contact.
Specifications & Features
- Wire Gauge: 22-18 AWG
- Stud Size: 3/8"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- V-groove serrations improve mechanical grip and current flow
- Brazed seam barrel ensures strength under stress
- Size clearly marked on terminal body for easy identification
- Made in USA
Description
These 22-18 AWG non-insulated ring terminals are engineered from annealed pure copper (Alloy 110) and feature an electro tin-plated finish for superior conductivity and corrosion resistance. Designed for secure, high-performance crimping, each terminal includes brazed barrel seams and internal V-groove serrations that maximize tensile strength and electrical contact.
Specifications & Features
- Wire Gauge: 22-18 AWG
- Stud Size: 3/8"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- V-groove serrations improve mechanical grip and current flow
- Brazed seam barrel ensures strength under stress
- Size clearly marked on terminal body for easy identification
- Made in USA
