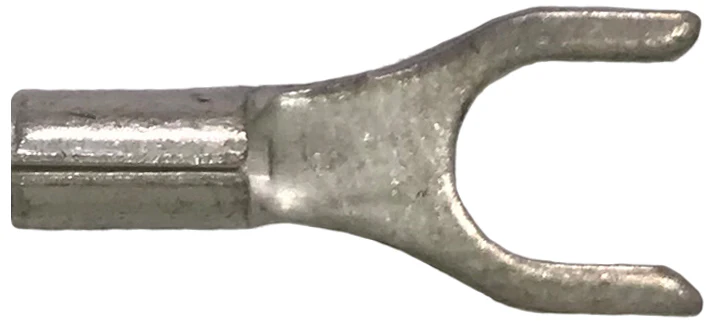

22-18 AWG Non-Insulated Spade Terminals - Tin-Plated Copper - #8 Stud - 100 to 1000 Pack - Made in USA—
$7.49
The Story
These 22-18 AWG non-insulated spade terminals are manufactured from high-conductivity copper (Alloy 110) and finished with electro tin plating for enhanced corrosion resistance. Built for durability, they feature brazed barrel seams and V-groove serrations to ensure strong, reliable crimps in automotive and industrial wiring systems.
Specifications & Features
- Wire Gauge: 22-18 AWG
- Stud Size: #8
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Insulation: Non-insulated
- Termination Type: Crimp
- Barrel Seam: Brazed
- Serrations: V-groove for superior contact and tensile strength
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Mil Spec: MIL-T-10727C Type 1; ASTM B 545 B (.0001–.00025" plating)
- Terminal size is clearly marked for easy identification
- Made in USA
Description
These 22-18 AWG non-insulated spade terminals are manufactured from high-conductivity copper (Alloy 110) and finished with electro tin plating for enhanced corrosion resistance. Built for durability, they feature brazed barrel seams and V-groove serrations to ensure strong, reliable crimps in automotive and industrial wiring systems.
Specifications & Features
- Wire Gauge: 22-18 AWG
- Stud Size: #8
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Insulation: Non-insulated
- Termination Type: Crimp
- Barrel Seam: Brazed
- Serrations: V-groove for superior contact and tensile strength
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Mil Spec: MIL-T-10727C Type 1; ASTM B 545 B (.0001–.00025" plating)
- Terminal size is clearly marked for easy identification
- Made in USA
