3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps
HomeStore

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps

$13.35

Original: $44.49

-70%
3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps—

$44.49

$13.35

The Story

3 Point Hi-Amp Terminal Busbar
VTE Inc. is now offering a High Amperage 3 Point Busbar. This busbar can accommodate large, high amperage cables up to 4/0 ga. Well suited for distributing power leads to marine bow thrusters and similar devices.

  • Highly cost effective solution for High Amperage Connections
  • Conductor Plate Material : Nickel plated brass
  • Base Material : Glass-filled nylon
  • Colors Available : Red & Black
  • Max Voltage: 48 vdc
  • Max Amperage: 700 amps @ 12 vdc
  • Connection Post Material : Stainless Steel
  • Lock Washer Material : Stainless Steel
  • Flat Washer Material : Stainless Steel
  • To comply with industry standards, an optional insulator protects terminal connections from accidental shorts. To ensure complete protection, terminal sleeves should be fitted with shrink-wrap

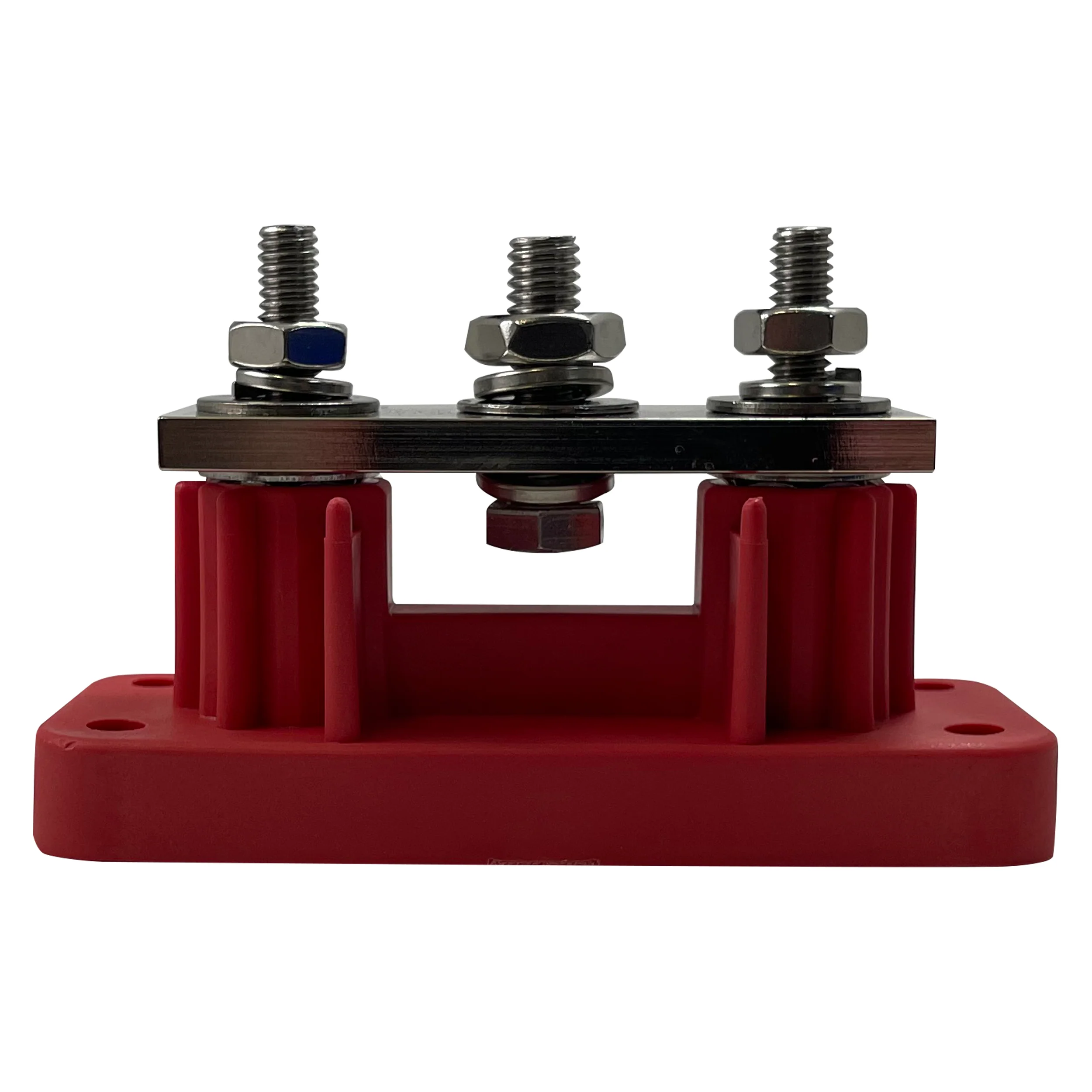

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

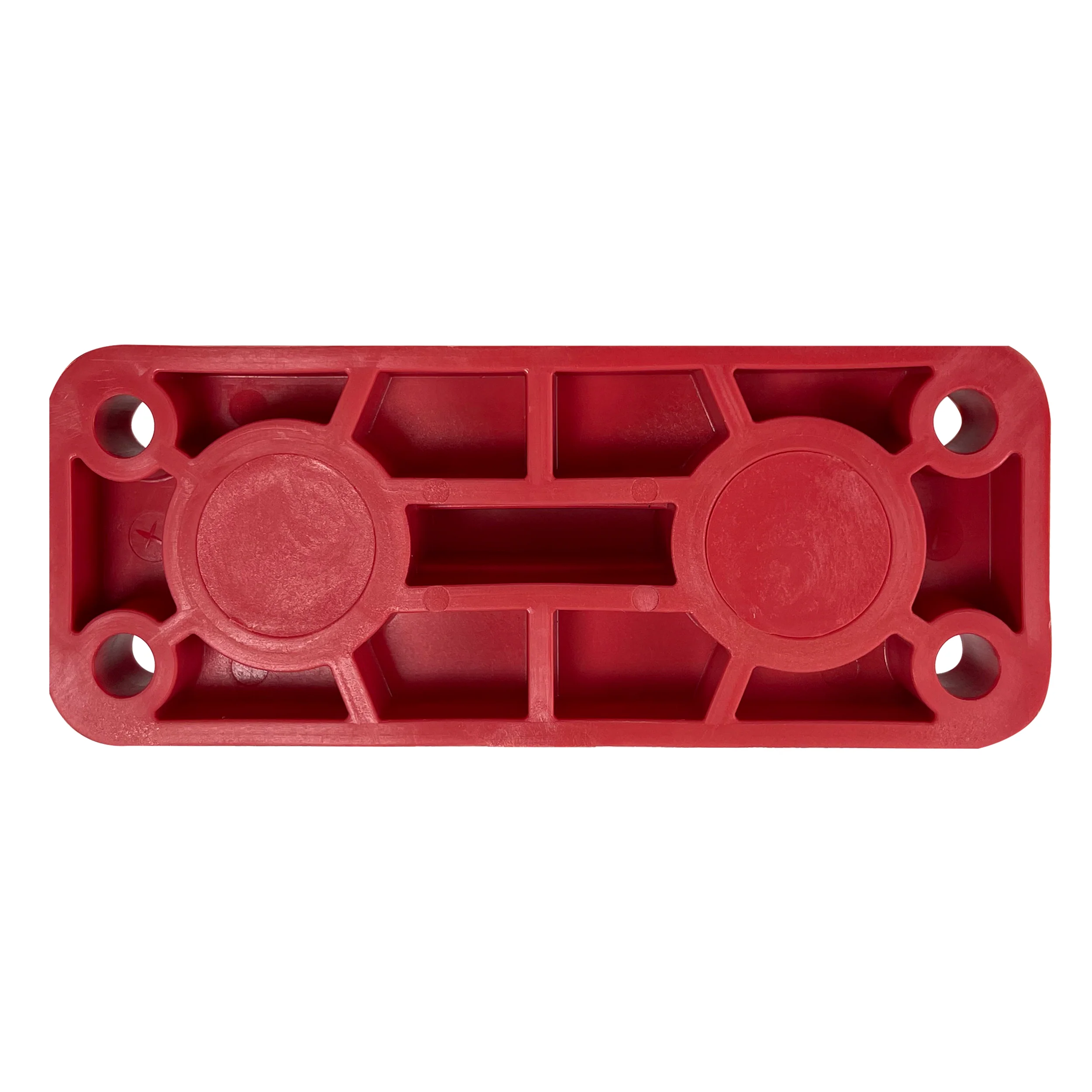

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

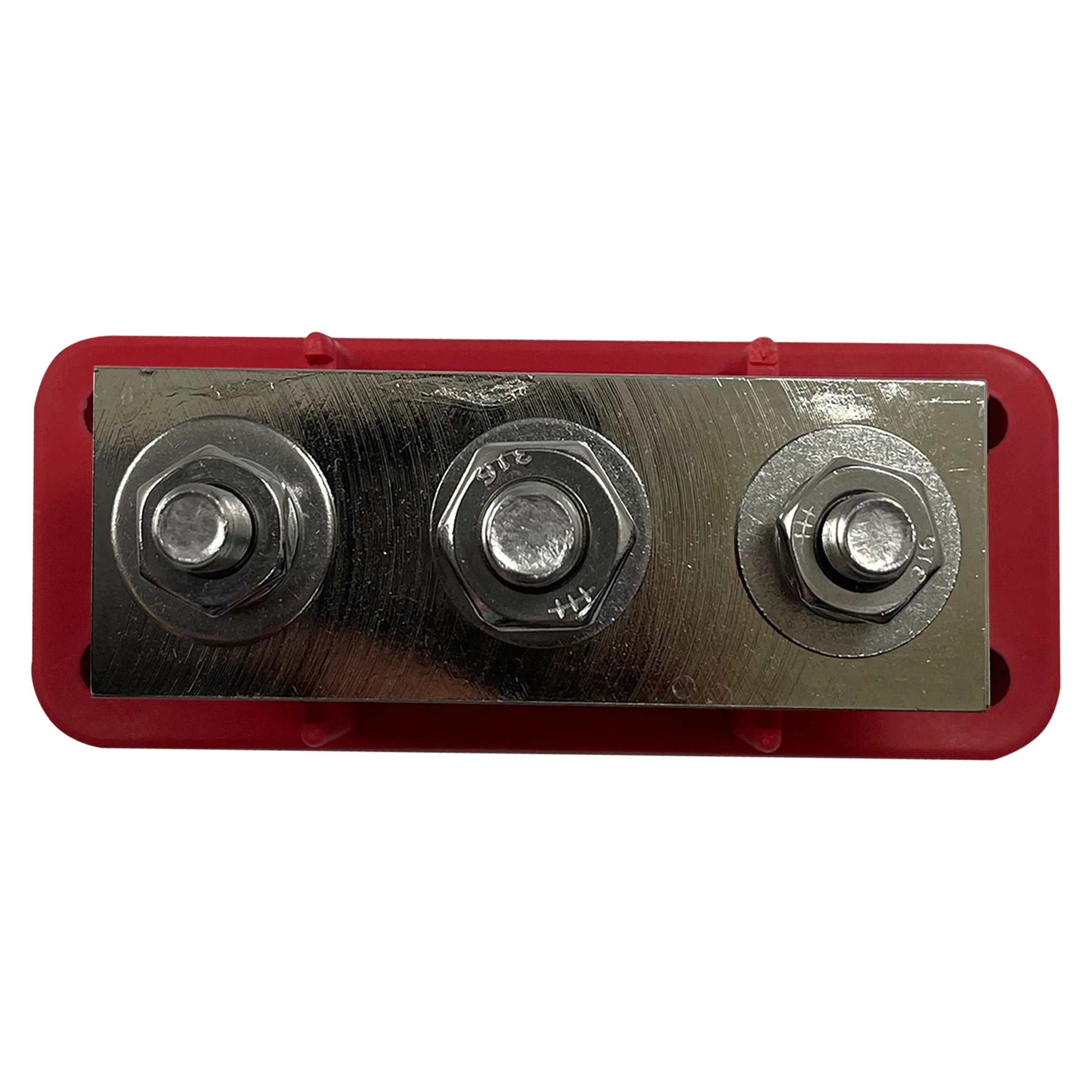

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

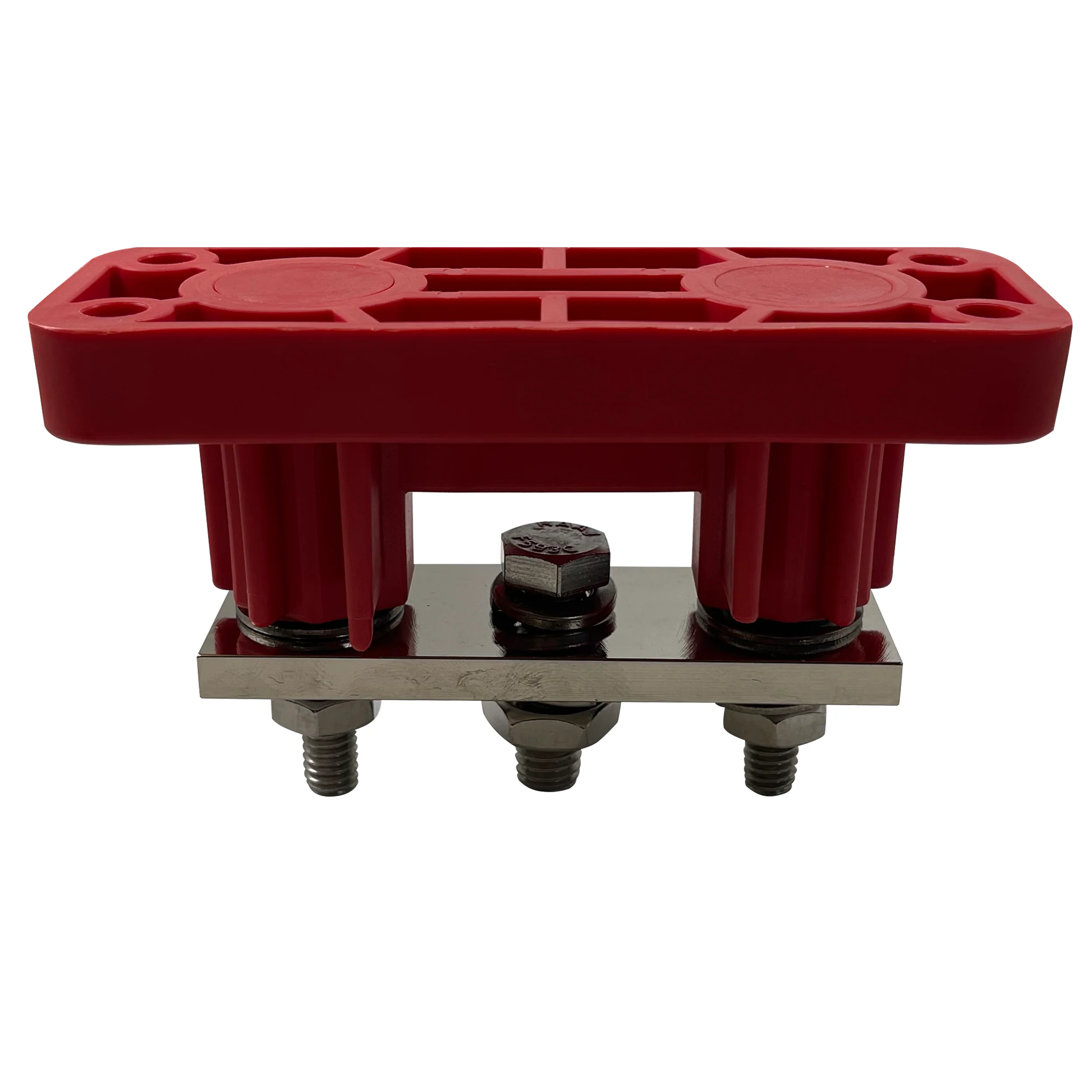

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

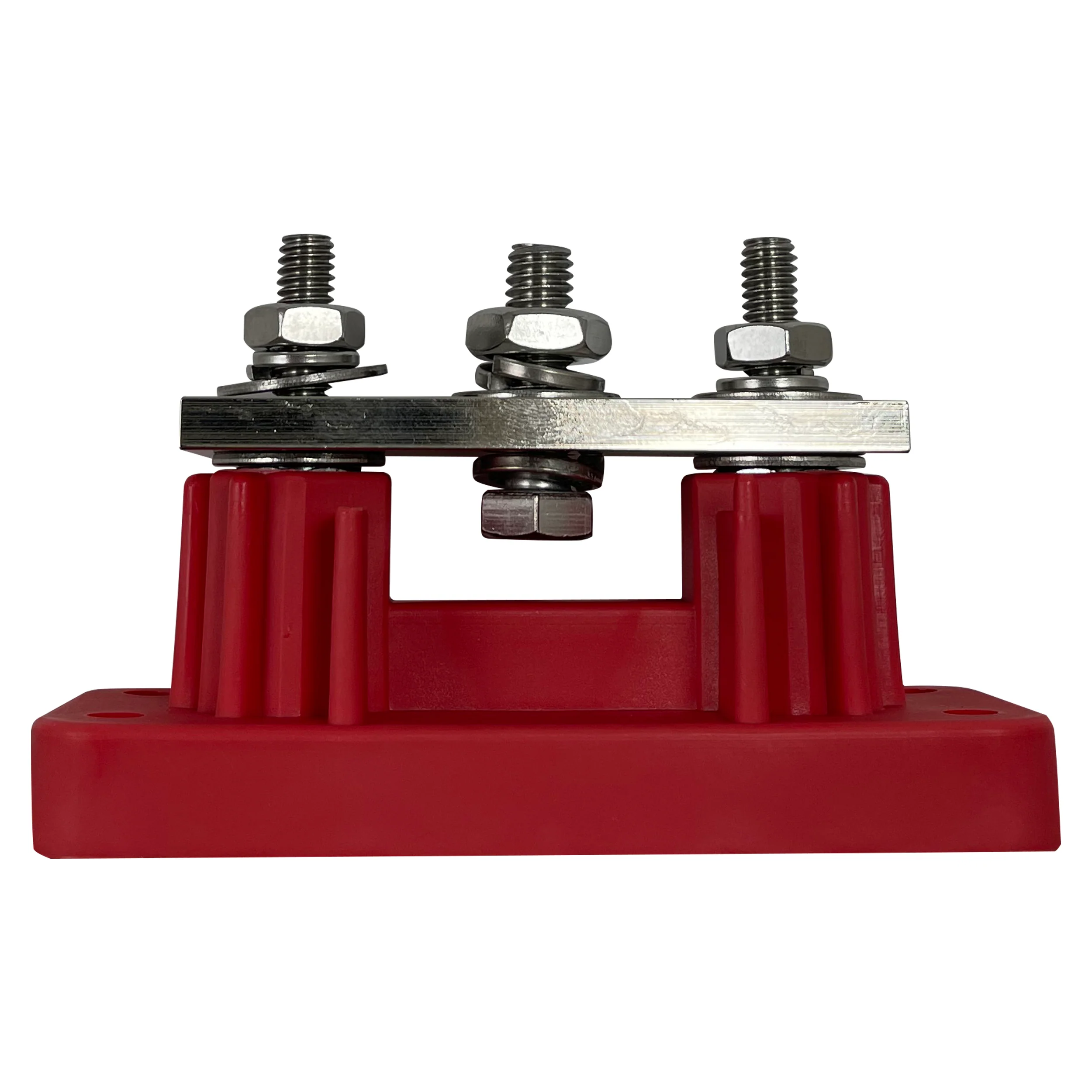

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

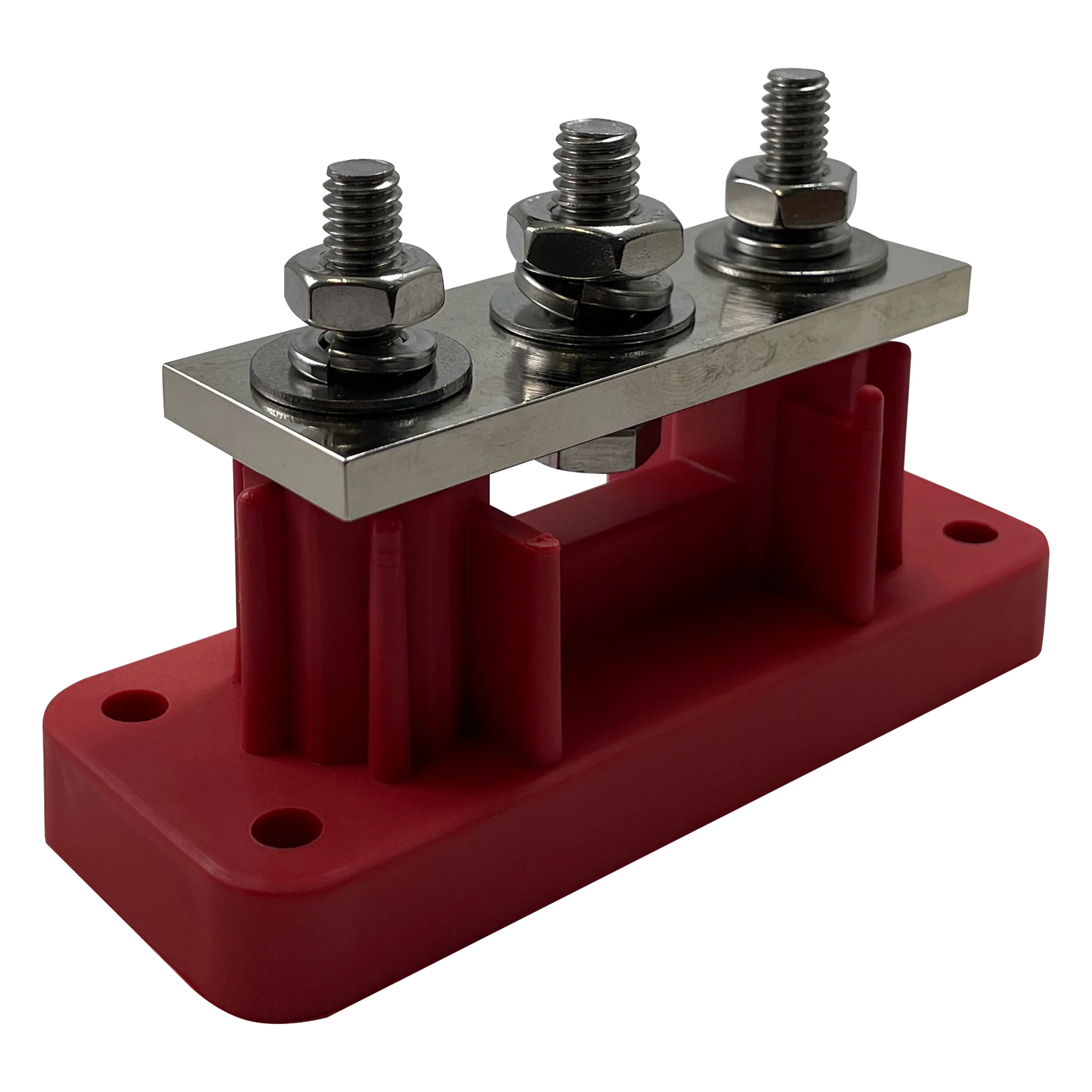

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

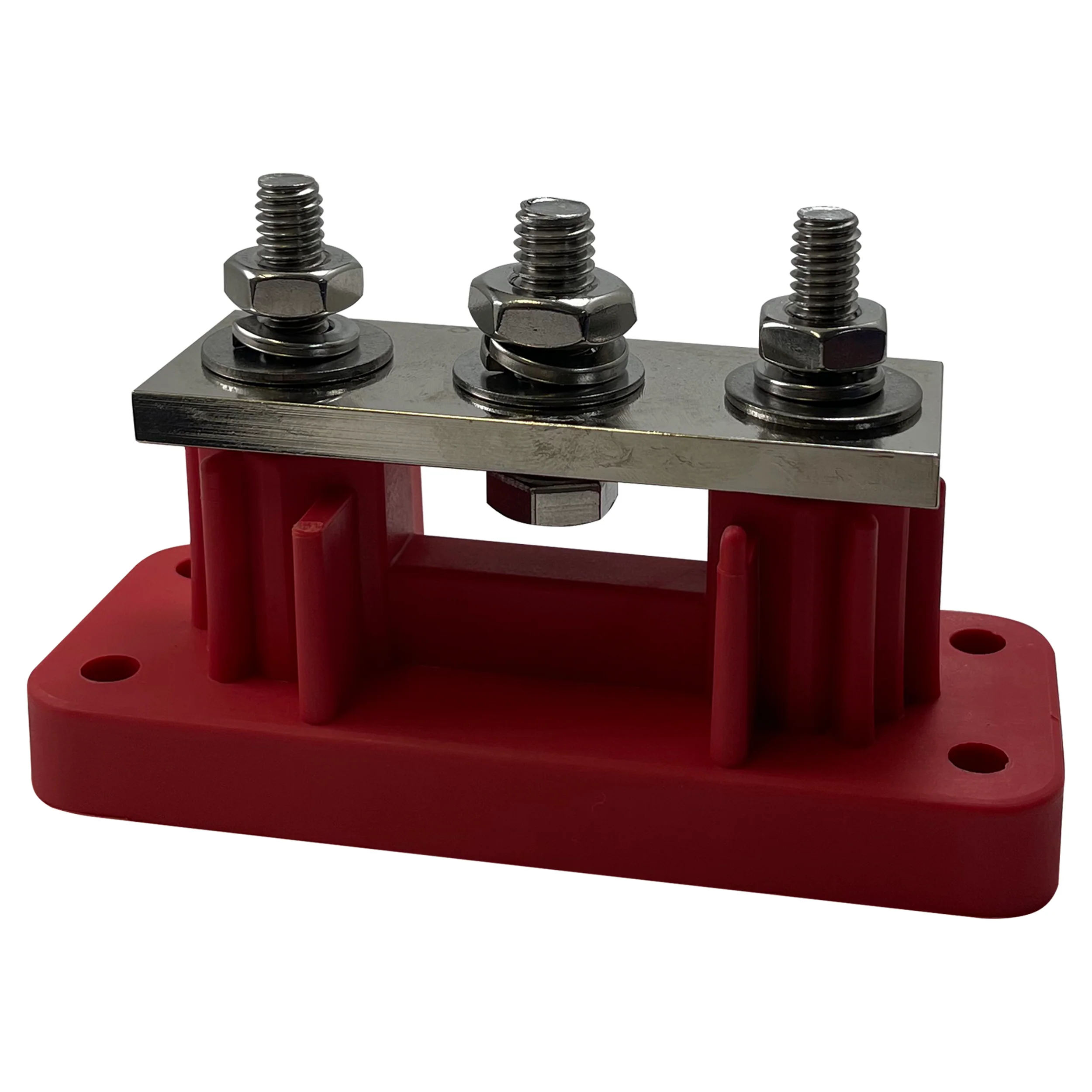

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

3 Point Hi-Amp Terminal Busbar
VTE Inc. is now offering a High Amperage 3 Point Busbar. This busbar can accommodate large, high amperage cables up to 4/0 ga. Well suited for distributing power leads to marine bow thrusters and similar devices.

  • Highly cost effective solution for High Amperage Connections
  • Conductor Plate Material : Nickel plated brass
  • Base Material : Glass-filled nylon
  • Colors Available : Red & Black
  • Max Voltage: 48 vdc
  • Max Amperage: 700 amps @ 12 vdc
  • Connection Post Material : Stainless Steel
  • Lock Washer Material : Stainless Steel
  • Flat Washer Material : Stainless Steel
  • To comply with industry standards, an optional insulator protects terminal connections from accidental shorts. To ensure complete protection, terminal sleeves should be fitted with shrink-wrap
