$4.05The Story

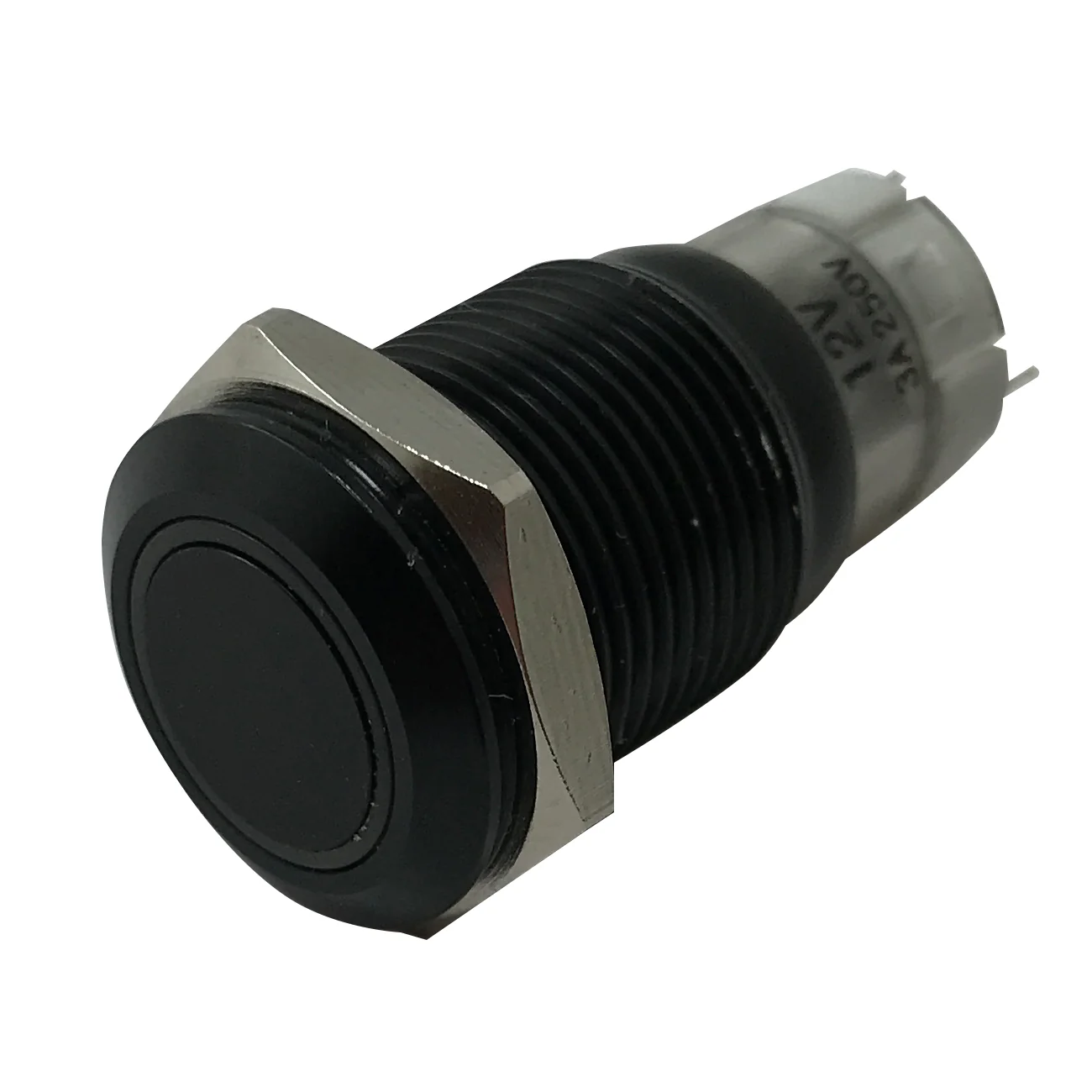

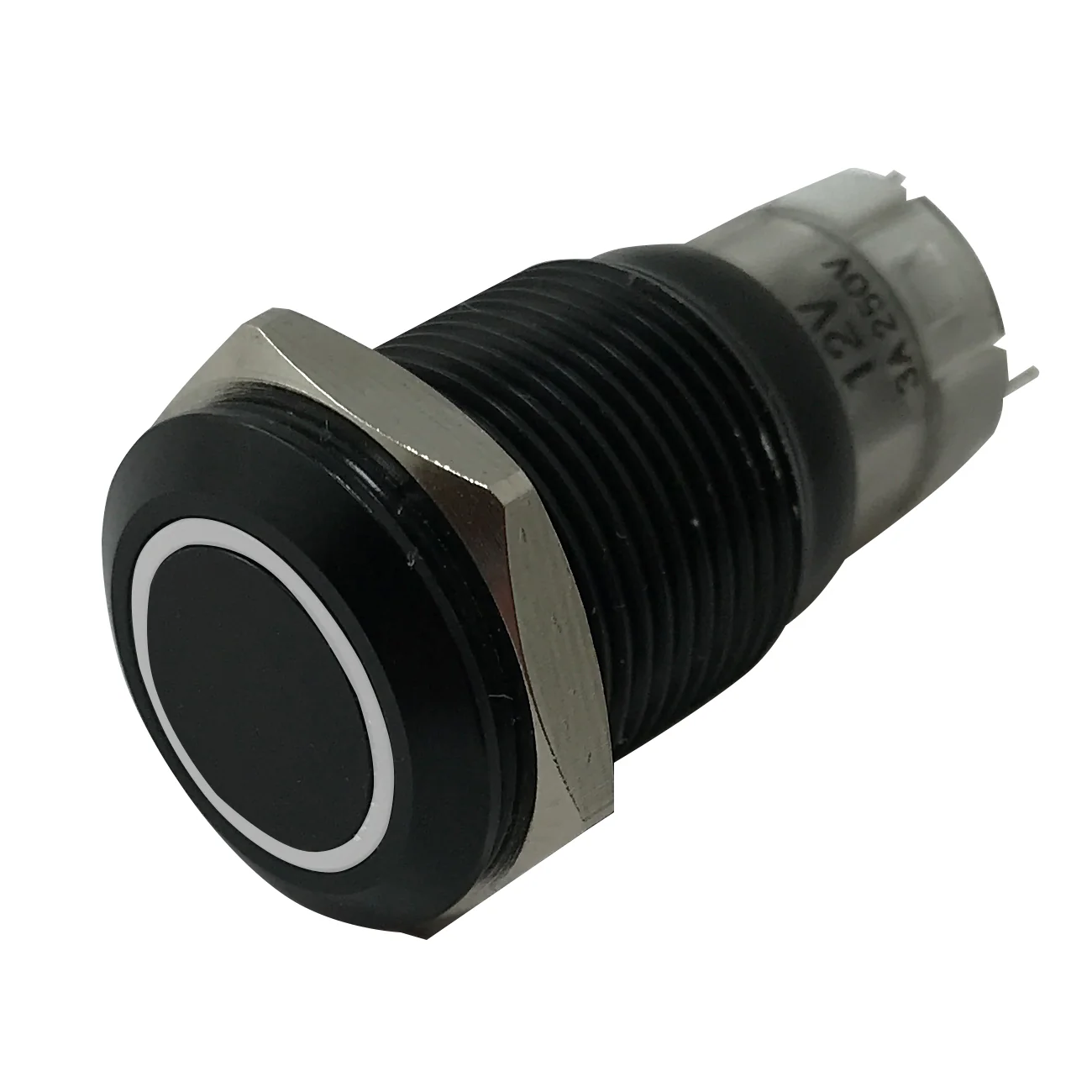

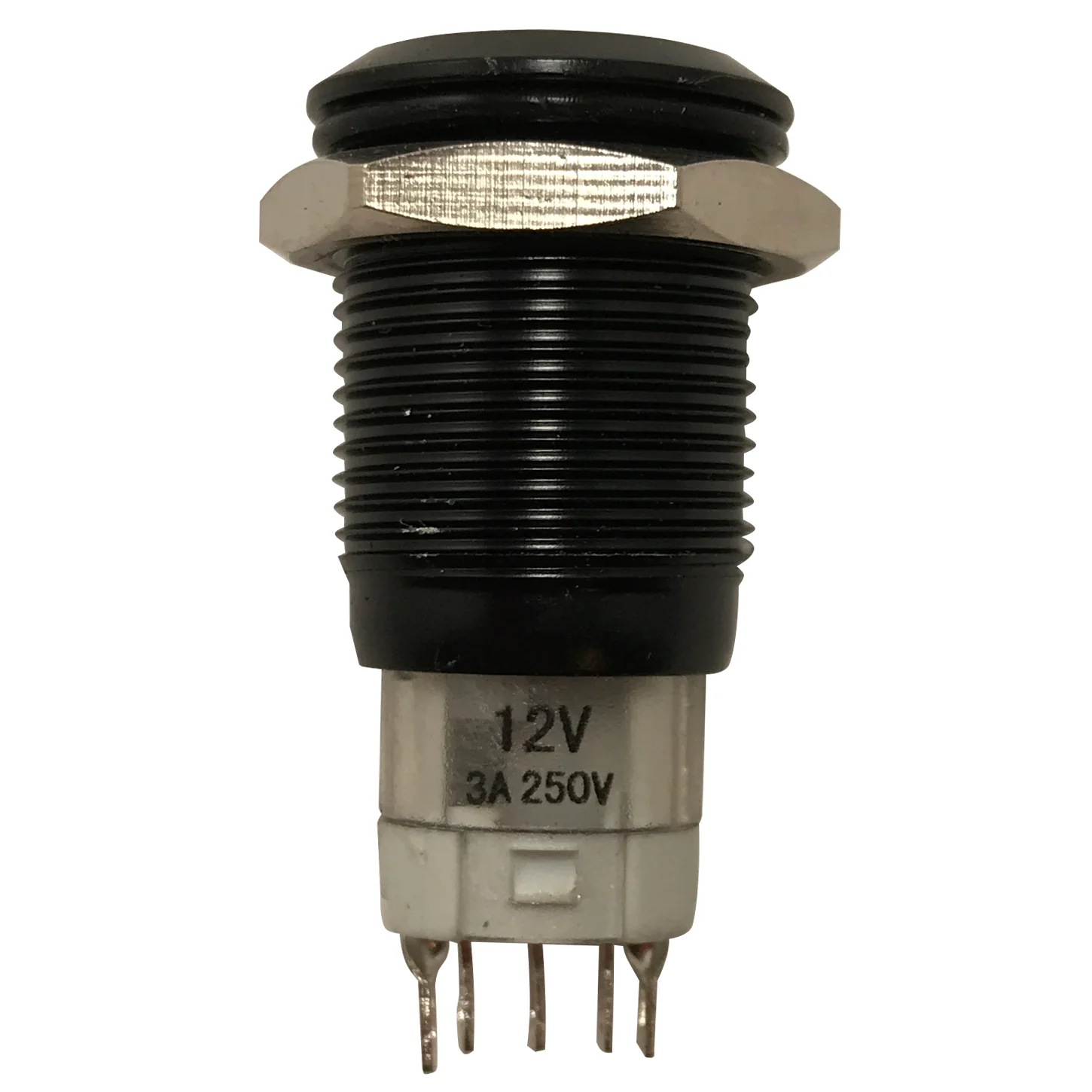

This LED latching push button switch features a durable black metal housing and is designed for use in 12V DC systems. Ideal for automotive, equipment, or dashboard applications, it offers reliable on/off control with bright LED ring illumination. The switch includes a pre-wired harness and supports both normally open and normally closed outputs for versatile use in custom circuits.
Specifications & Features
- Mounting Hole Size: 5/8" (16mm)
- Switch Type: Latching (Push On / Push Off)

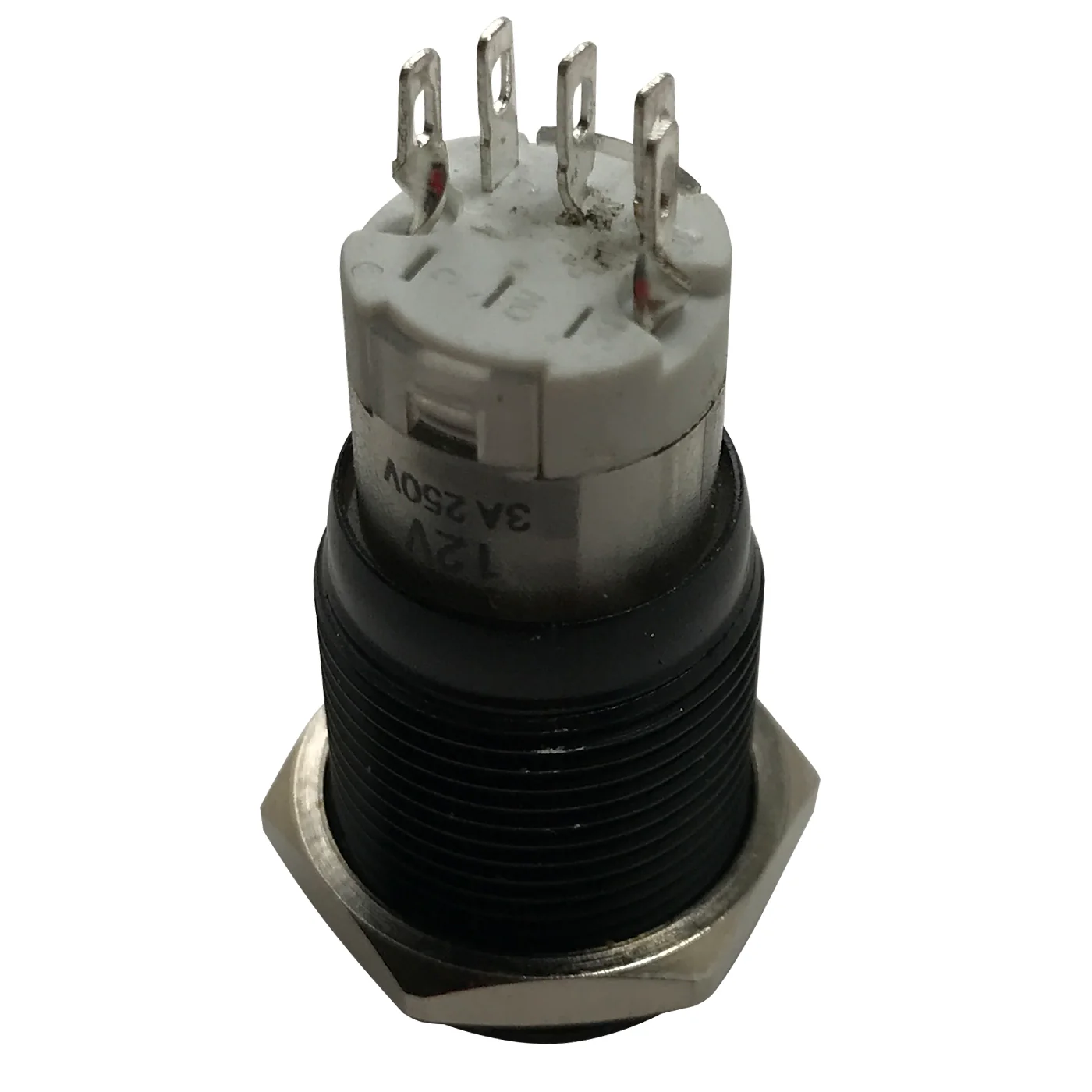

- Switch Rating: 3A @ 250VAC
- LED Rating: 15mA, AC/DC 12V
- Housing: Black metal with chrome bezel

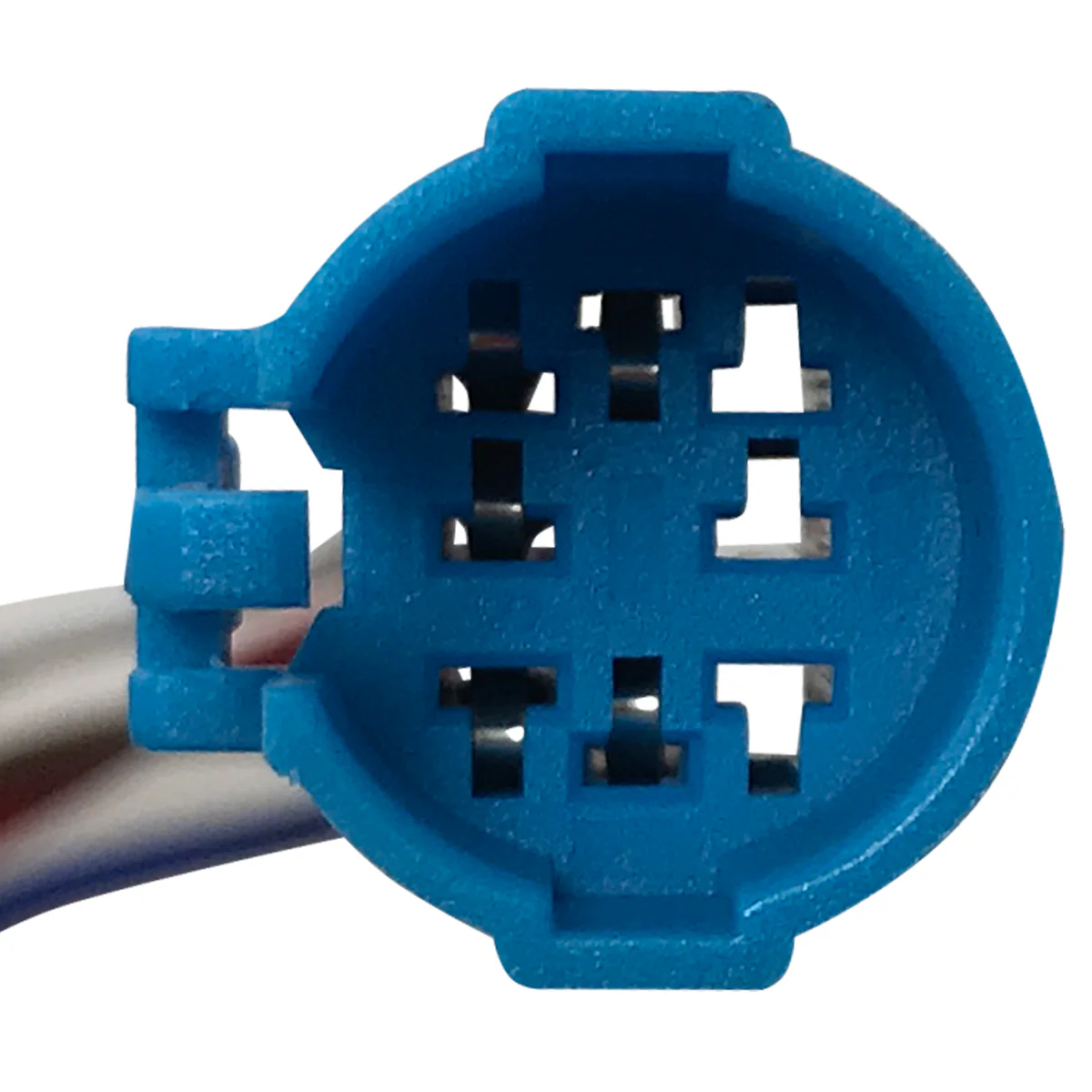

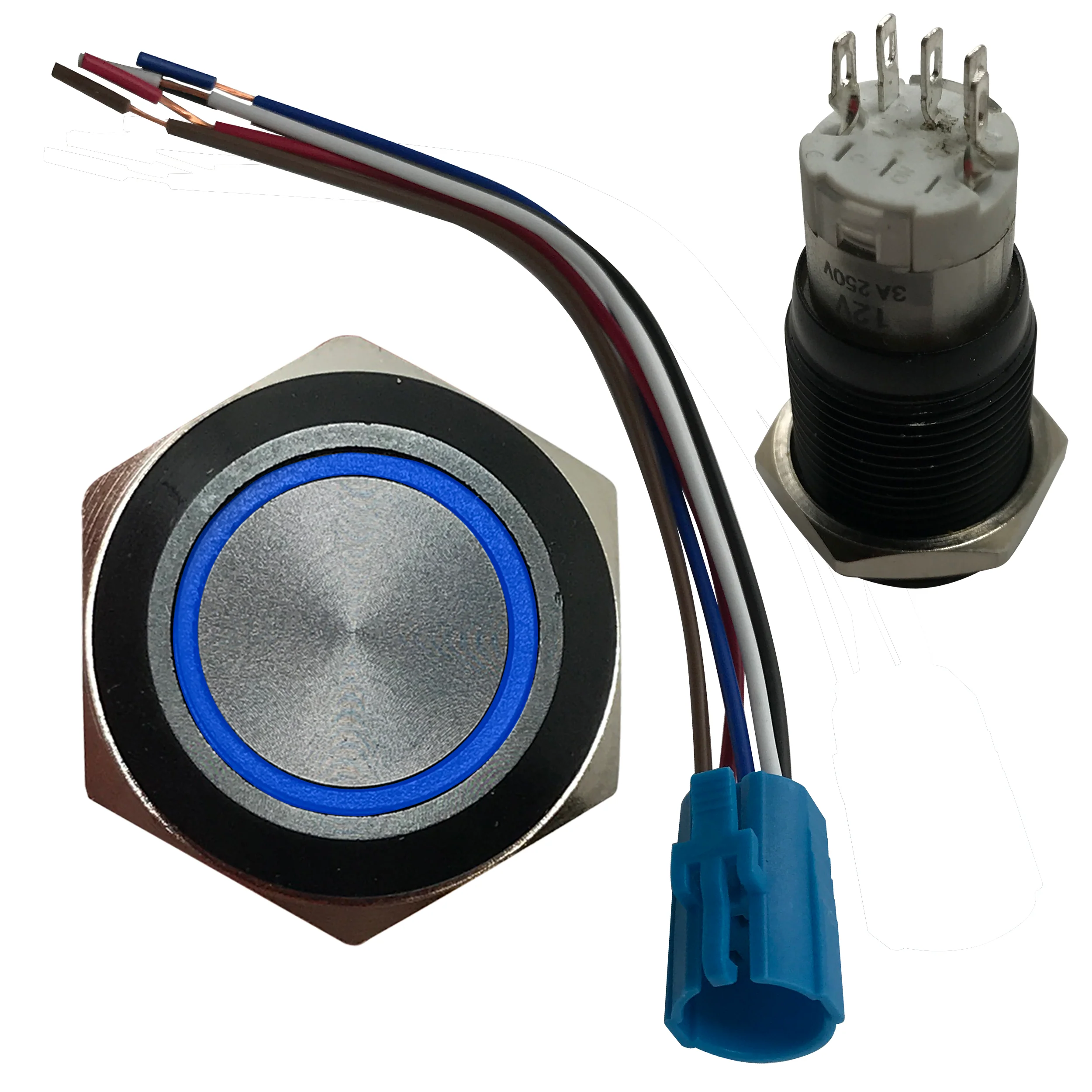

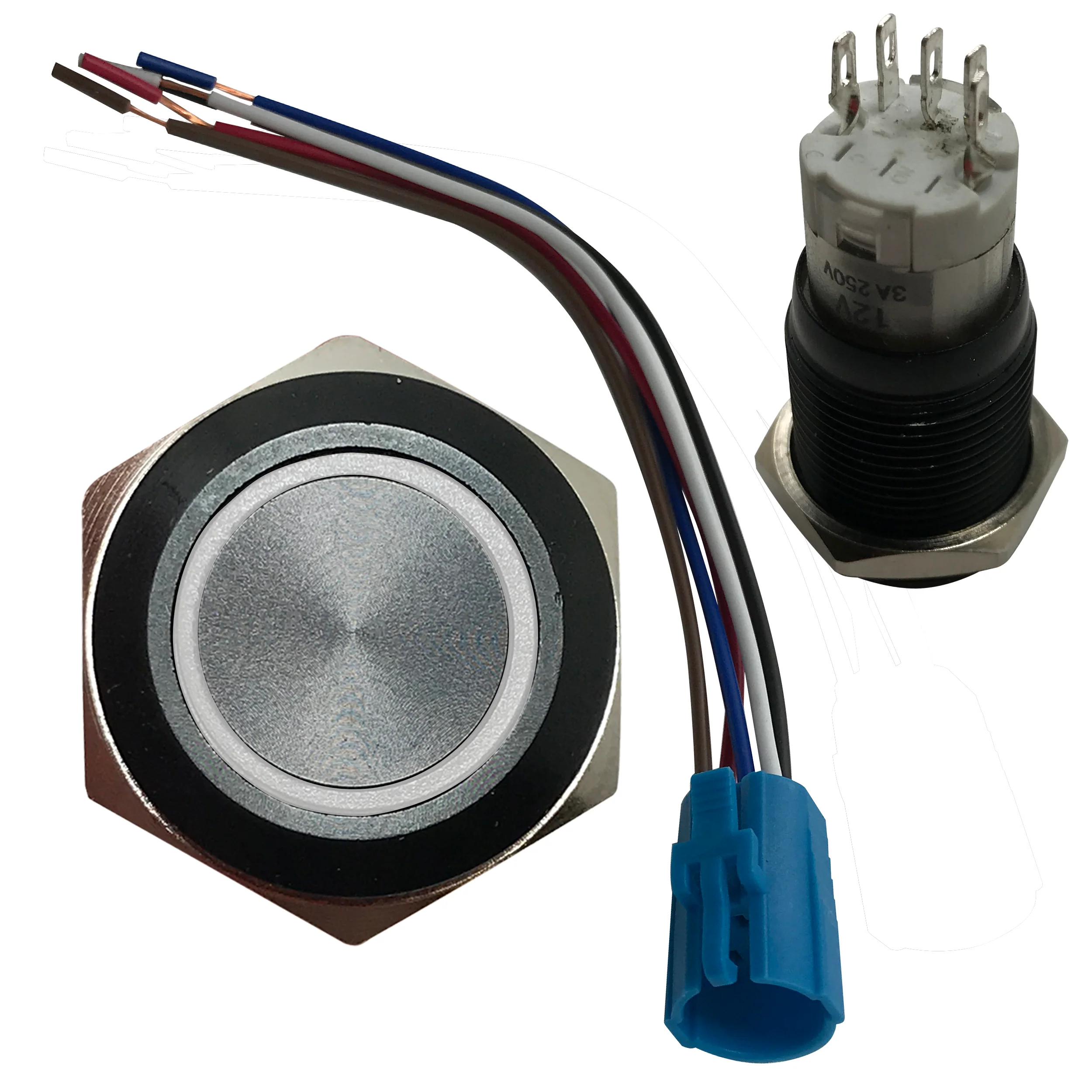

- Includes pre-wired harness for quick installation
- IP67 water-resistant rating for harsh environments
- Available LED colors: Red, Green, Blue, White, Yellow

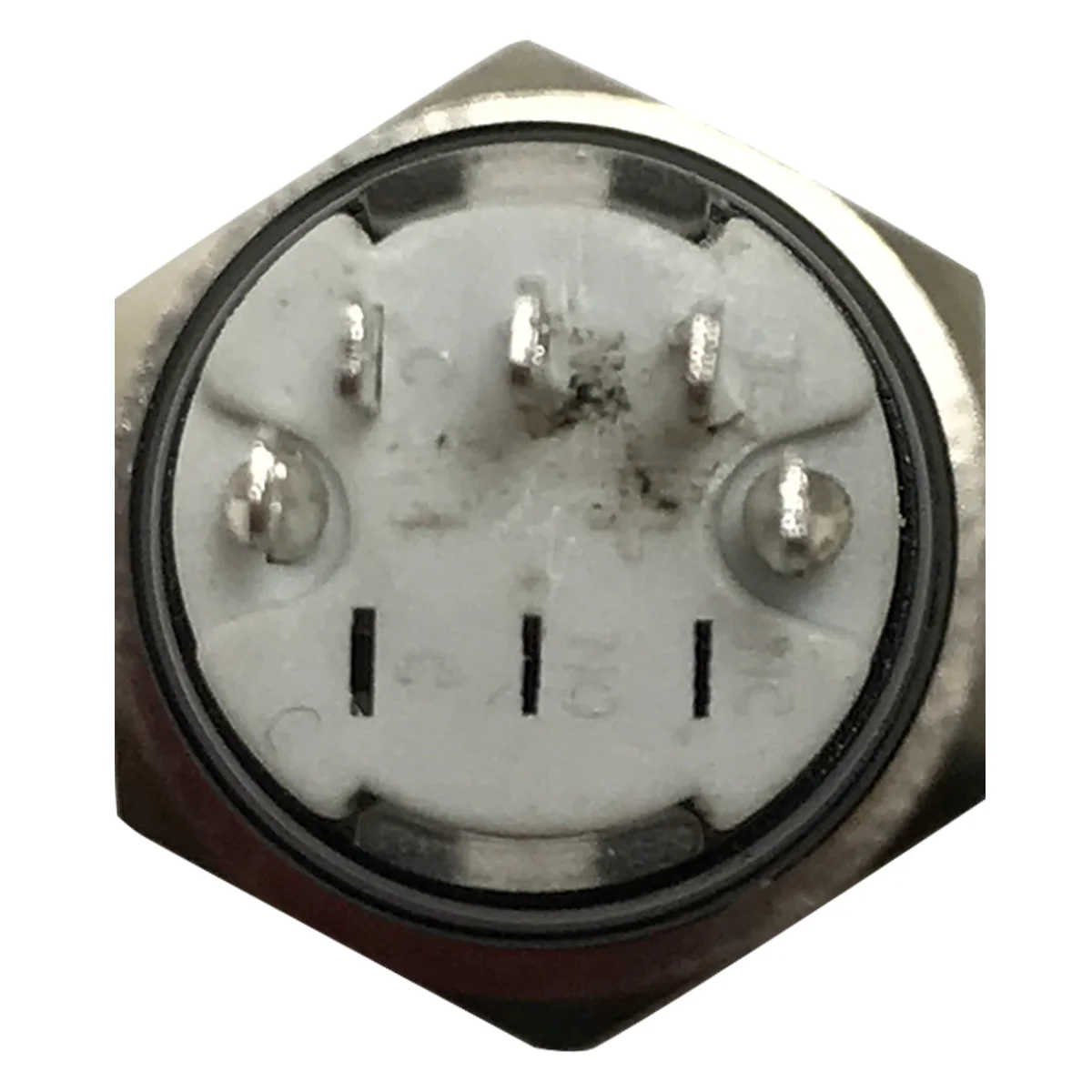

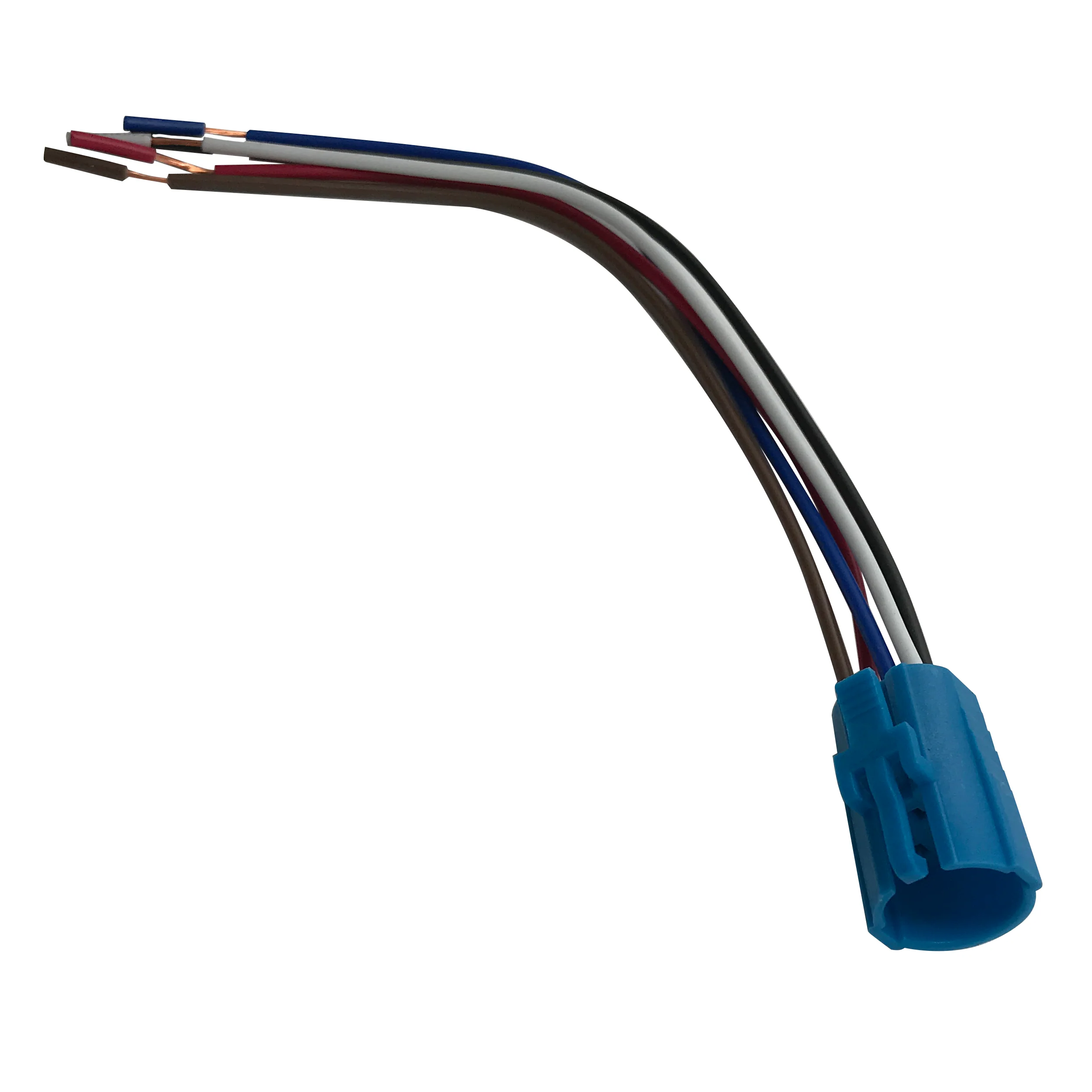

Wiring Guide
- Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring.
- Black: Connect to (-) ground. This is the (-) ground wire of the led ring.
- White: Common input
- Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
- Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This LED latching push button switch features a durable black metal housing and is designed for use in 12V DC systems. Ideal for automotive, equipment, or dashboard applications, it offers reliable on/off control with bright LED ring illumination. The switch includes a pre-wired harness and supports both normally open and normally closed outputs for versatile use in custom circuits.
Specifications & Features
- Mounting Hole Size: 5/8" (16mm)
- Switch Type: Latching (Push On / Push Off)
- Switch Rating: 3A @ 250VAC
- LED Rating: 15mA, AC/DC 12V
- Housing: Black metal with chrome bezel
- Includes pre-wired harness for quick installation
- IP67 water-resistant rating for harsh environments
- Available LED colors: Red, Green, Blue, White, Yellow
Wiring Guide
- Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring.
- Black: Connect to (-) ground. This is the (-) ground wire of the led ring.
- White: Common input
- Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
- Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
