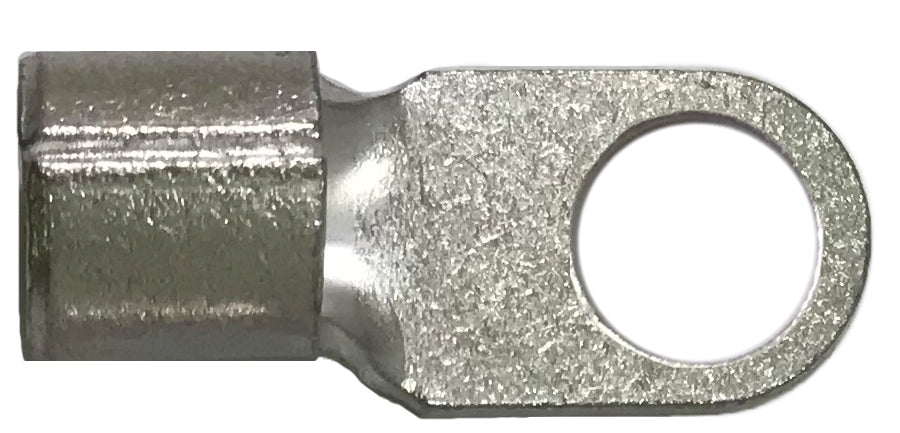

-70%2 AWG Non-Insulated Ring Terminal - 3/8" Stud - 100 to 1000 Pack - Made in USA—
$21.99
$6.60The Story
These 2 AWG non-insulated ring terminals are crafted from annealed pure copper (Alloy 110) and electro tin-plated for high conductivity and exceptional corrosion resistance. Designed with brazed barrel seams and internal V-groove serrations, they ensure secure crimps and strong electrical contact in demanding applications.
Specifications & Features
- Wire Gauge: 2 AWG
- Stud Size: 3/8"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- Brazed seam barrels increase durability during high-stress applications
- V-groove serrations maximize tensile strength and electrical contact after crimping
- Clear size markings for quick and easy identification
- Made in USA
Description
These 2 AWG non-insulated ring terminals are crafted from annealed pure copper (Alloy 110) and electro tin-plated for high conductivity and exceptional corrosion resistance. Designed with brazed barrel seams and internal V-groove serrations, they ensure secure crimps and strong electrical contact in demanding applications.
Specifications & Features
- Wire Gauge: 2 AWG
- Stud Size: 3/8"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- Brazed seam barrels increase durability during high-stress applications
- V-groove serrations maximize tensile strength and electrical contact after crimping
- Clear size markings for quick and easy identification
- Made in USA
