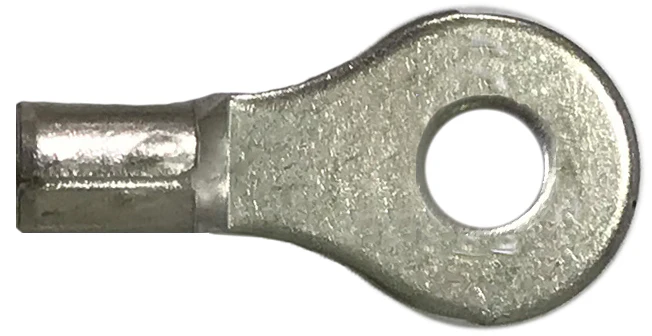

-70%8 AWG Non-Insulated Ring Terminal - #8 Stud - 25 to 1000 Pack - Made in USA—
$6.99
$2.10The Story
Built for reliability in demanding environments, this non-insulated ring terminal is engineered from pure copper (Alloy 110) and electro tin-plated for corrosion resistance. Its brazed barrel seam and "V" groove serrations deliver maximum conductivity and pull strength for secure crimped connections.
Specifications & Features
- Wire Range: 8 AWG
- Stud Size: #8
- Insulation: Non-insulated
- Termination Type: Crimp
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Barrel: Brazed seam with "V" groove serrations
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Standards: MIL-T-10727C Type 1; ASTM B 545 B (.0001"–.00025" plating)
- Size clearly marked on each terminal for easy identification
- Made in USA
Description
Built for reliability in demanding environments, this non-insulated ring terminal is engineered from pure copper (Alloy 110) and electro tin-plated for corrosion resistance. Its brazed barrel seam and "V" groove serrations deliver maximum conductivity and pull strength for secure crimped connections.
Specifications & Features
- Wire Range: 8 AWG
- Stud Size: #8
- Insulation: Non-insulated
- Termination Type: Crimp
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Barrel: Brazed seam with "V" groove serrations
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Standards: MIL-T-10727C Type 1; ASTM B 545 B (.0001"–.00025" plating)
- Size clearly marked on each terminal for easy identification
- Made in USA
