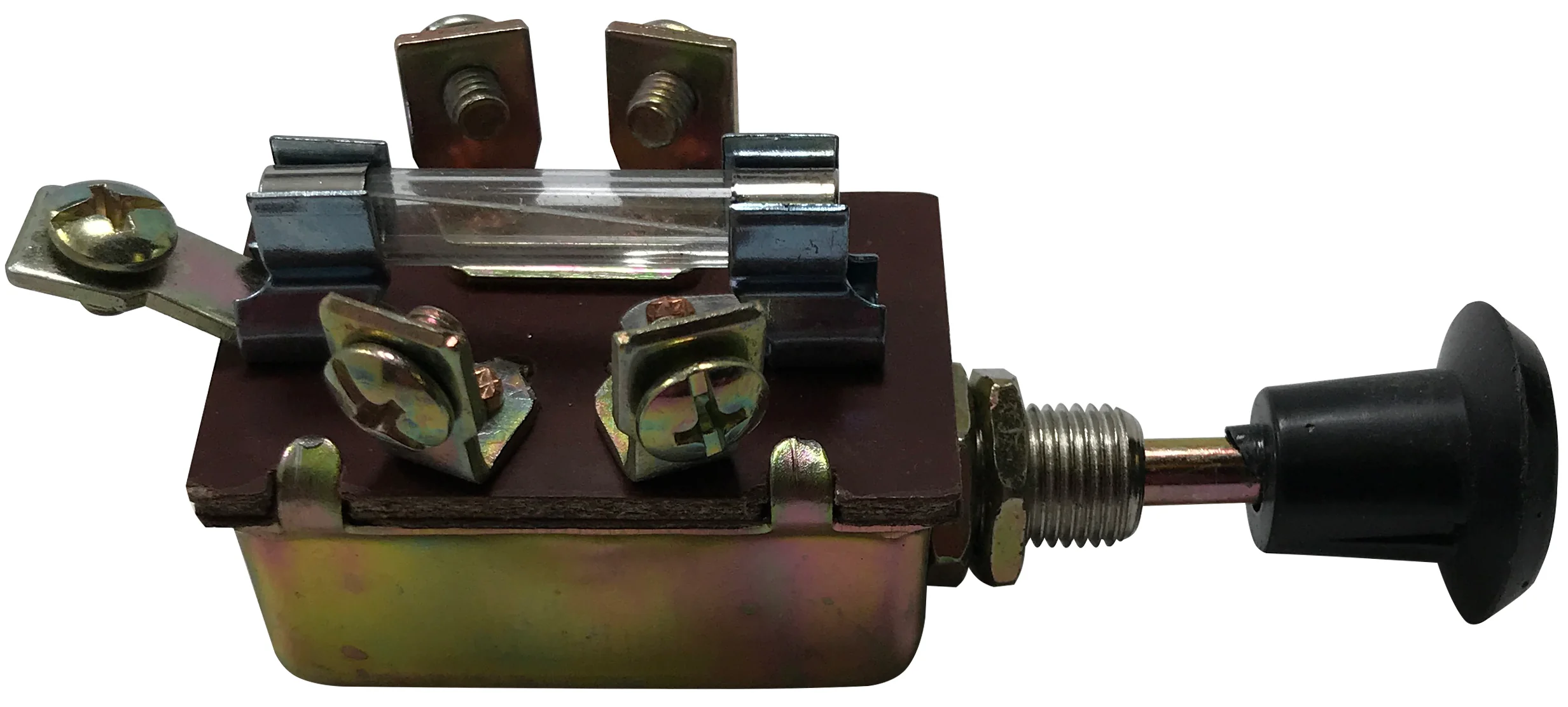

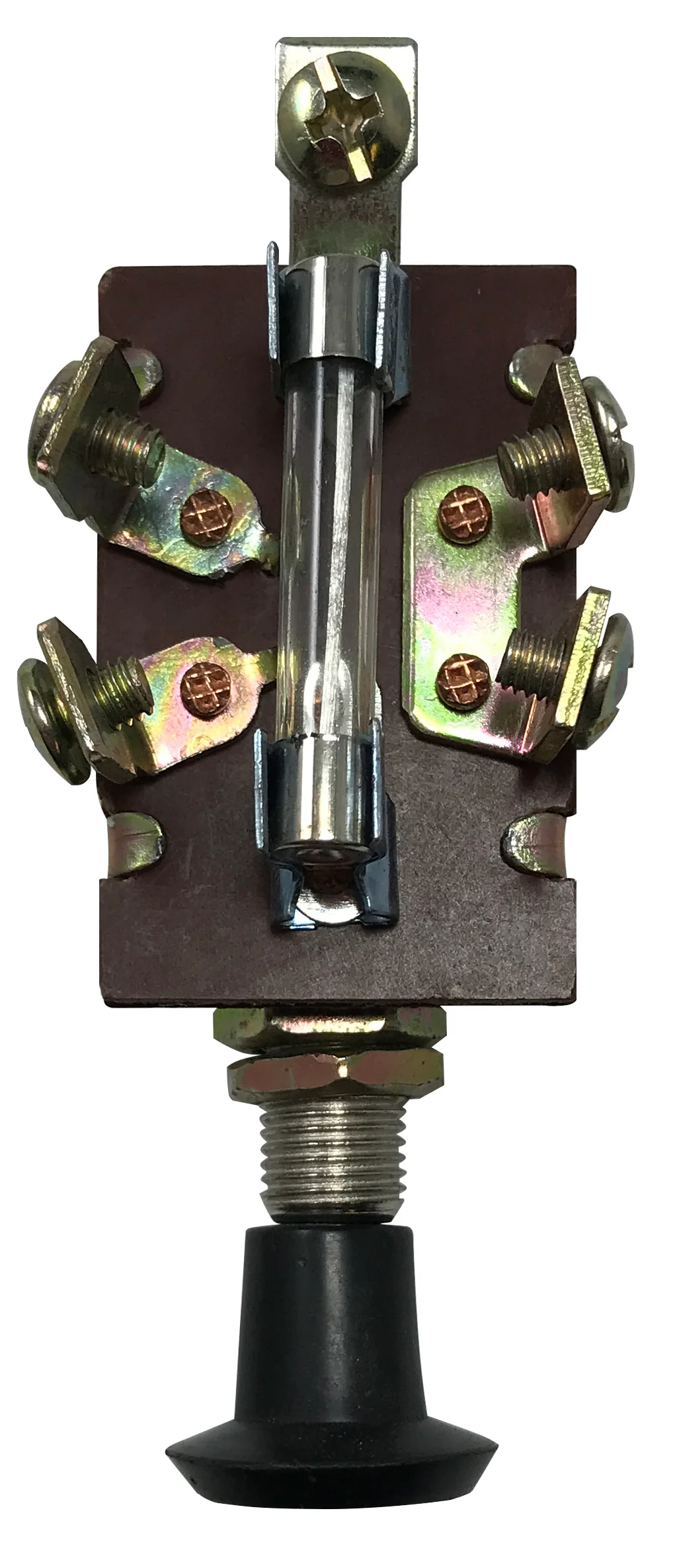

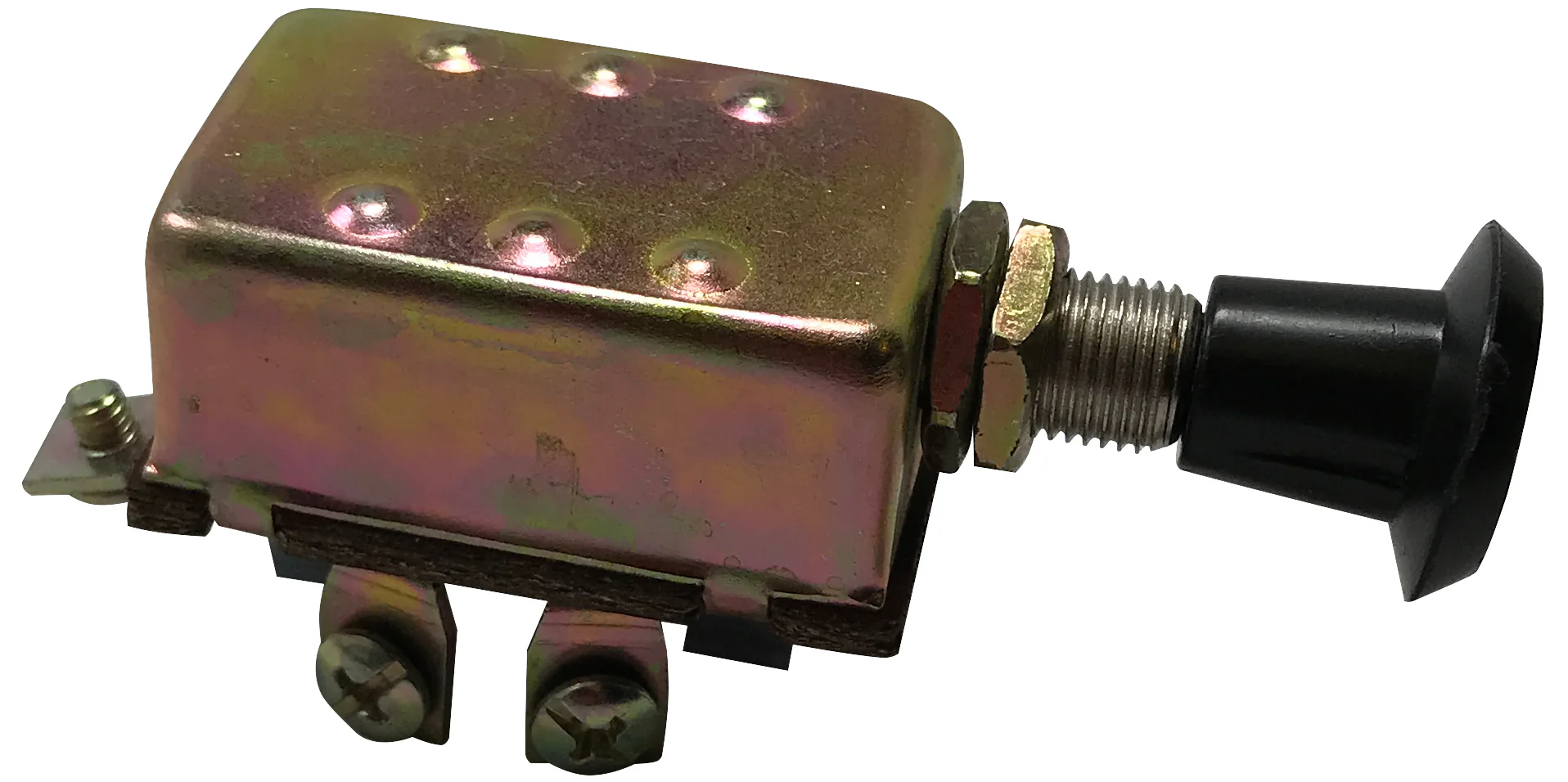

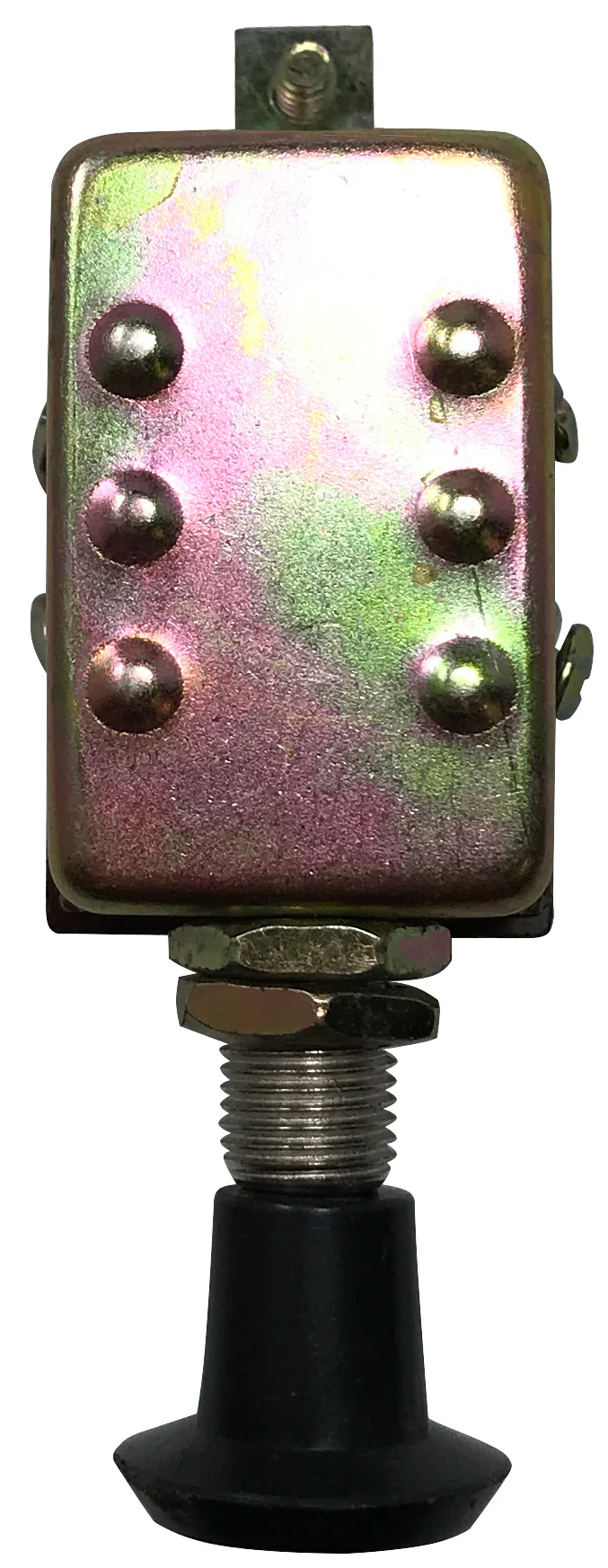

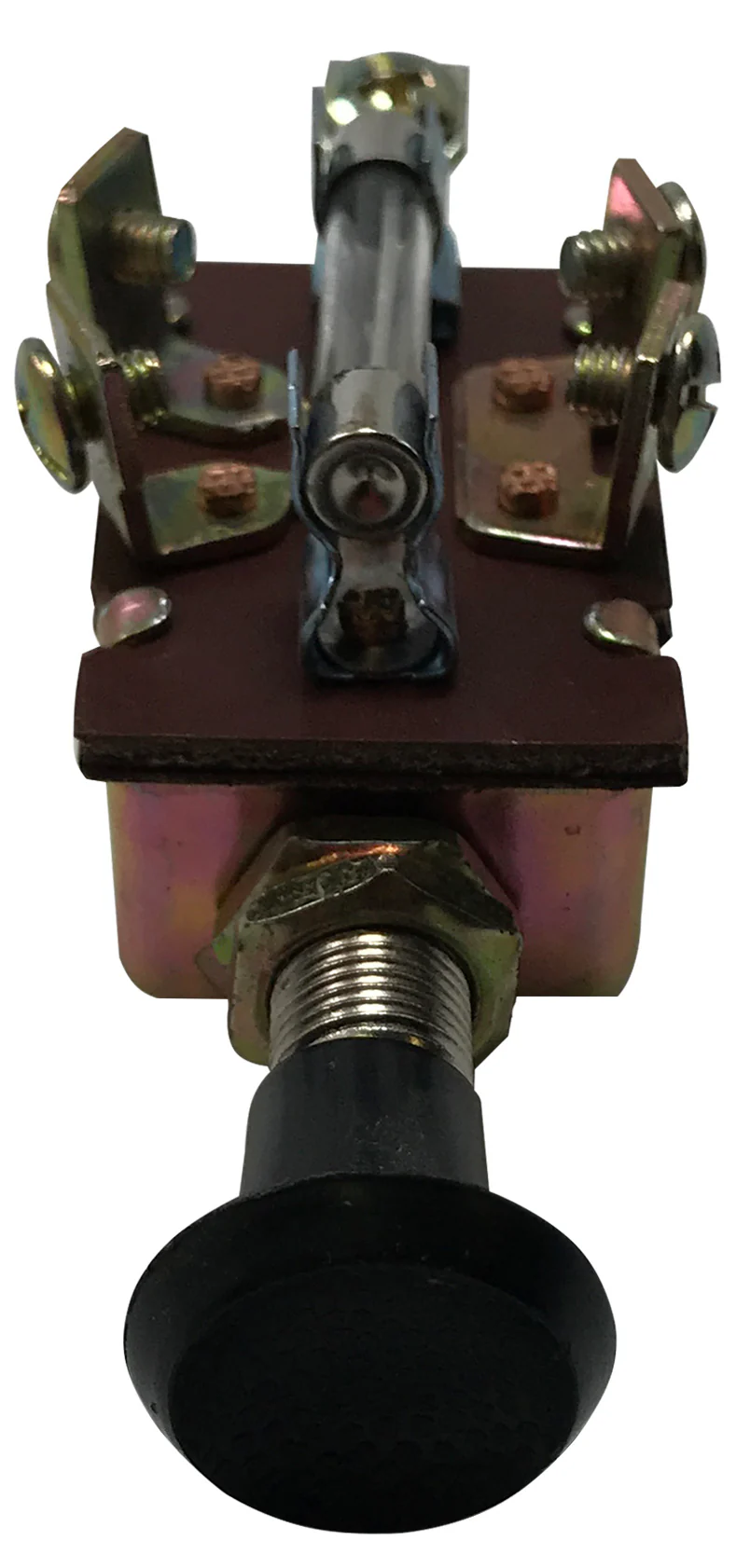

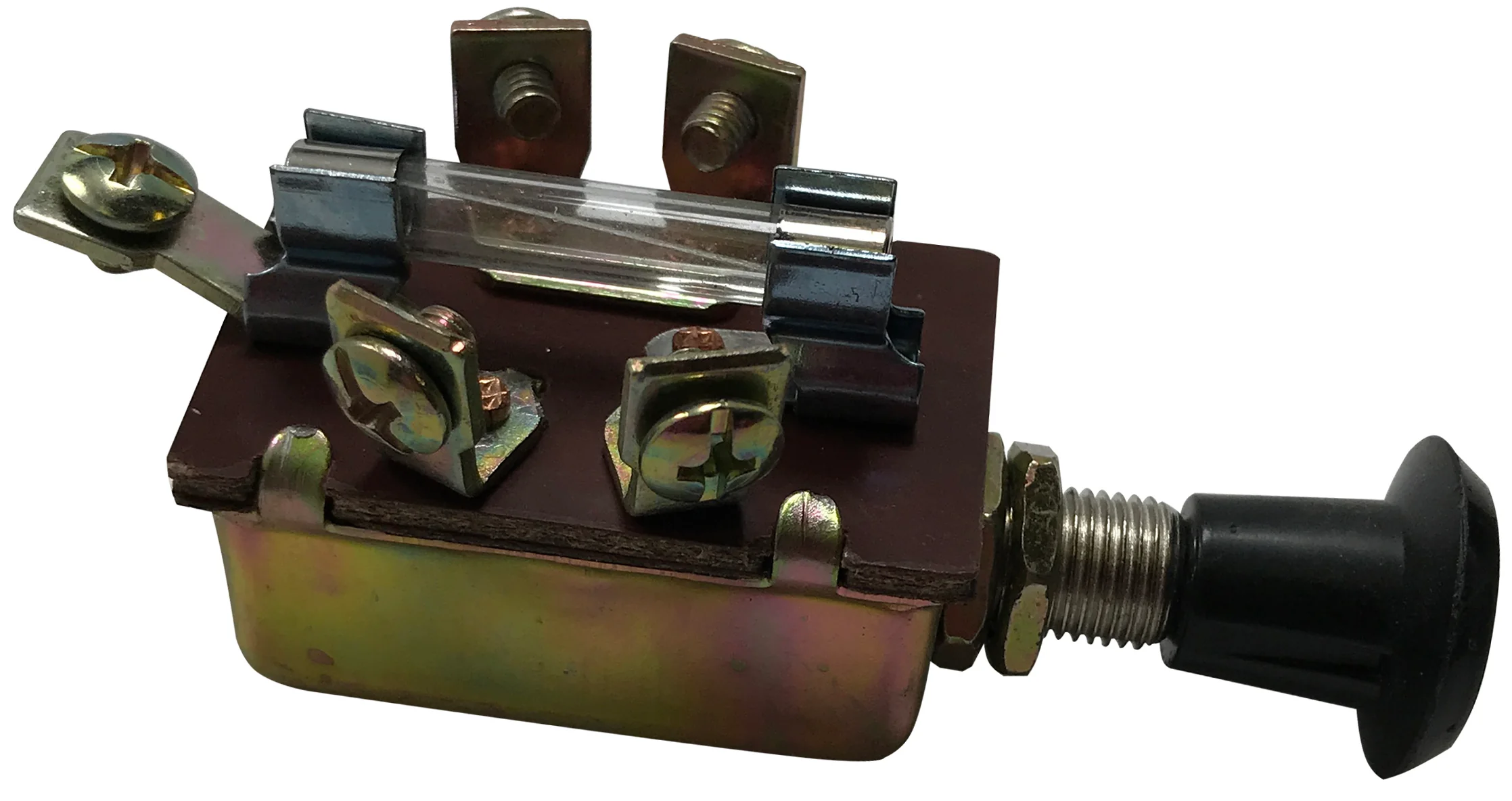

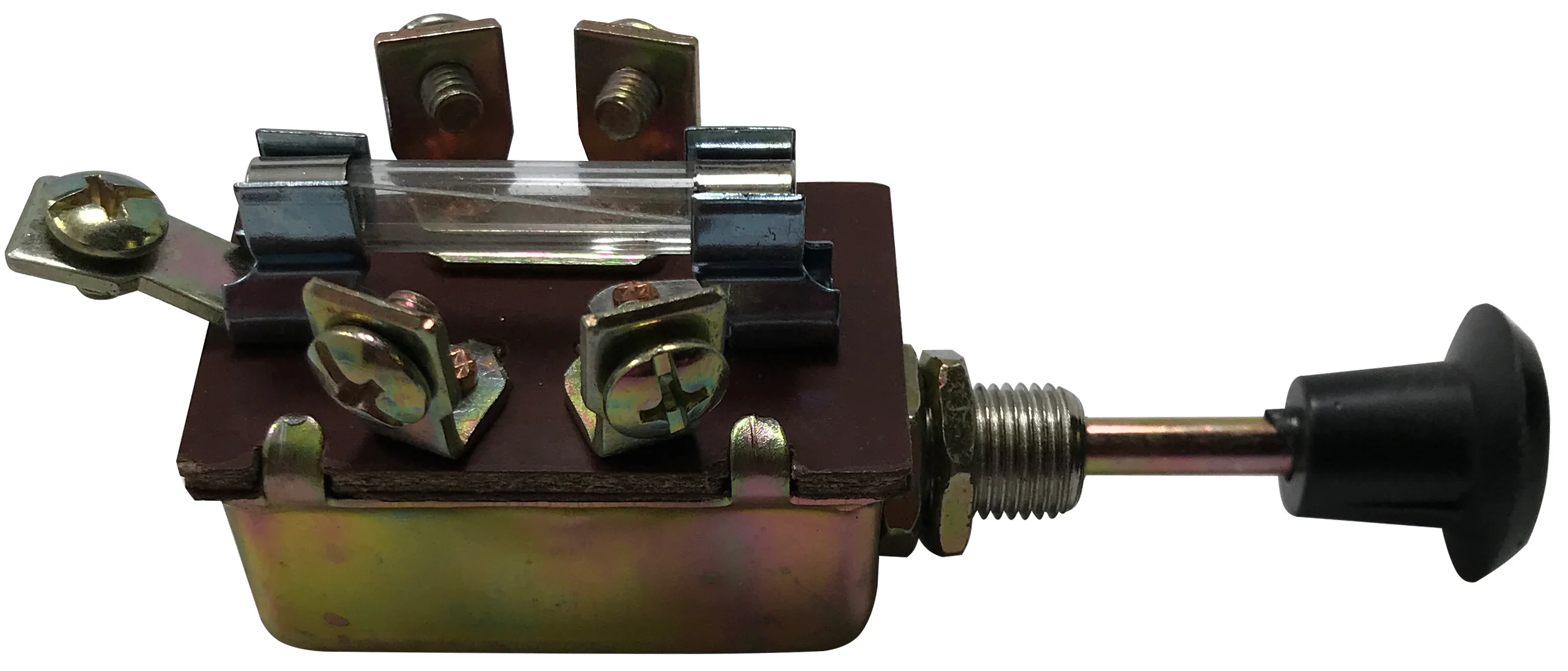

12V Universal Push-Pull Headlight Switch - 3-Position, 5-Terminal, Fused

This 12V universal headlight switch features a fused three-position Off-On-On function, ideal for controlling dual-stage lighting or other 12V circuits. Built with durable materials and five screw-type terminals, it ensures secure connections and reliable electrical performance in automotive applications.

Features

• Glass fuse built into circuit for overload protection
• Copper alloy conductors for low-resistance performance
• Direct snap-fit mounting with 1/2" stem for panel installation

Specifications

• Voltage: 12V DC
• Switch Type: Push-Pull
• Positions: 3 (Off-On-On)
• Terminal Quantity: 5
• Terminal Type: Male screw
• Mounting Stem Diameter: 0.50 in.
• Attachment Method: Snap-fit
• Materials: Aluminum, Dichromate, Plastic
• Color: Silver and Black

Cross Reference Part Numbers

Compatible with or replaces the following part numbers:

• STANDARD MOTOR PRODUCTS – DS135
• AIRTEX – 1S4727 – Direct Cross Interchange – 3
• WELLS – SW8X – Direct Cross Interchange – 2
• Forecast – HLS12 – Direct Cross Interchange – 2
• ECHLIN – HL6050 – Indirect Cross Interchange – 3
• ACDelco – U1906A – Indirect Cross Interchange – 2
• GM – 88924587 – Indirect Cross Interchange – 2
• ECHLIN – HL6049 – Indirect Cross Interchange – 2
• BWD – S2109 – Indirect Cross Interchange – 2
• ACDelco – U1502 – Indirect Cross Interchange – 1
• ACDelco – U1500 – Indirect Cross Interchange – 1
• ACDelco – D1503 – Indirect Cross Interchange – 1
• BORG WARNER – S141 – Indirect Cross Interchange – 1
• GM – 1995021 – Indirect Cross Interchange – 1
• GM – 1994017 – Indirect Cross Interchange – 1
• GM – 1972302 – Indirect Cross Interchange – 1
• GM – 12302012 – Indirect Cross Interchange – 1
• GP SORENSEN – LS96 – Indirect Cross Interchange – 1
• MOTORCRAFT – SW305 – Indirect Cross Interchange – 1

Applications

Ideal for headlight systems, dual-stage lighting, or auxiliary 12V functions in:

• Custom automotive electrical builds
• Older vehicle retrofits
• Fleet maintenance and service vehicles
