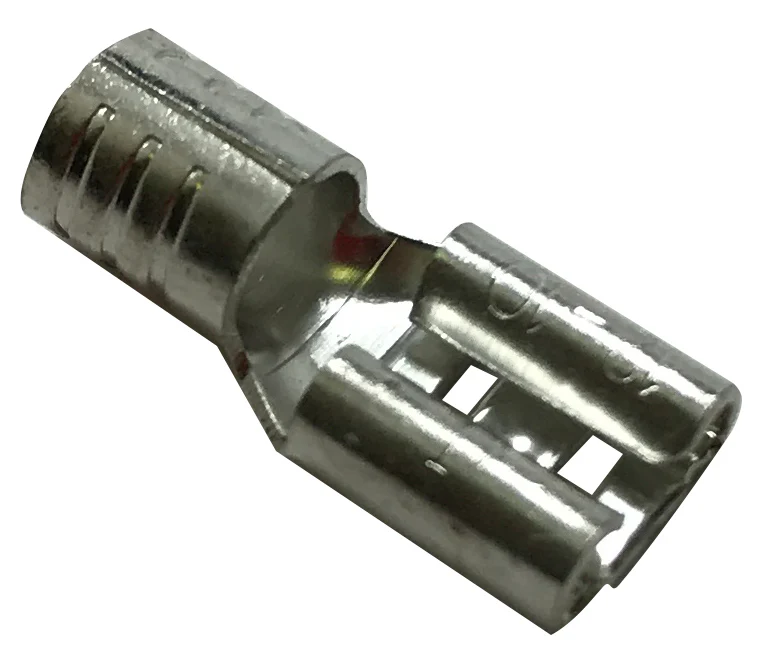

These 8 AWG non-insulated female quick disconnect terminals feature a .250" tab and are designed for high-performance crimp connections in automotive, industrial, and electrical systems. Made from tin-plated brass, these terminals provide excellent conductivity and corrosion resistance. The brazed barrel seam and V-groove serrations ensure a secure mechanical grip and optimal current transfer after crimping.
Specifications & Features
- Wire Gauge: 8 AWG
- Tab Size: .250" (1/4")
- Material: Brass
- Plating: Electro tin-plated
- Insulation Type: Non-insulated
- Termination Type: Crimp
- Seam Type: Brazed barrel
- Serration Design: V-groove serrations enhance grip and electrical contact
- Voltage Rating: 600 Volts
- Temperature Rating: Up to 230°F (110°C)
- Markings: Terminals are clearly stamped for wire size identification
- Certifications: cULus listed
- Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
- Made in USA
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
These 8 AWG non-insulated female quick disconnect terminals feature a .250" tab and are designed for high-performance crimp connections in automotive, industrial, and electrical systems. Made from tin-plated brass, these terminals provide excellent conductivity and corrosion resistance. The brazed barrel seam and V-groove serrations ensure a secure mechanical grip and optimal current transfer after crimping.
Specifications & Features
- Wire Gauge: 8 AWG
- Tab Size: .250" (1/4")
- Material: Brass
- Plating: Electro tin-plated
- Insulation Type: Non-insulated
- Termination Type: Crimp
- Seam Type: Brazed barrel
- Serration Design: V-groove serrations enhance grip and electrical contact
- Voltage Rating: 600 Volts
- Temperature Rating: Up to 230°F (110°C)
- Markings: Terminals are clearly stamped for wire size identification
- Certifications: cULus listed
- Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
- Made in USA
