LED Latching Push Button Switch - 12V Black Metal - On/Off - 19mm Mount

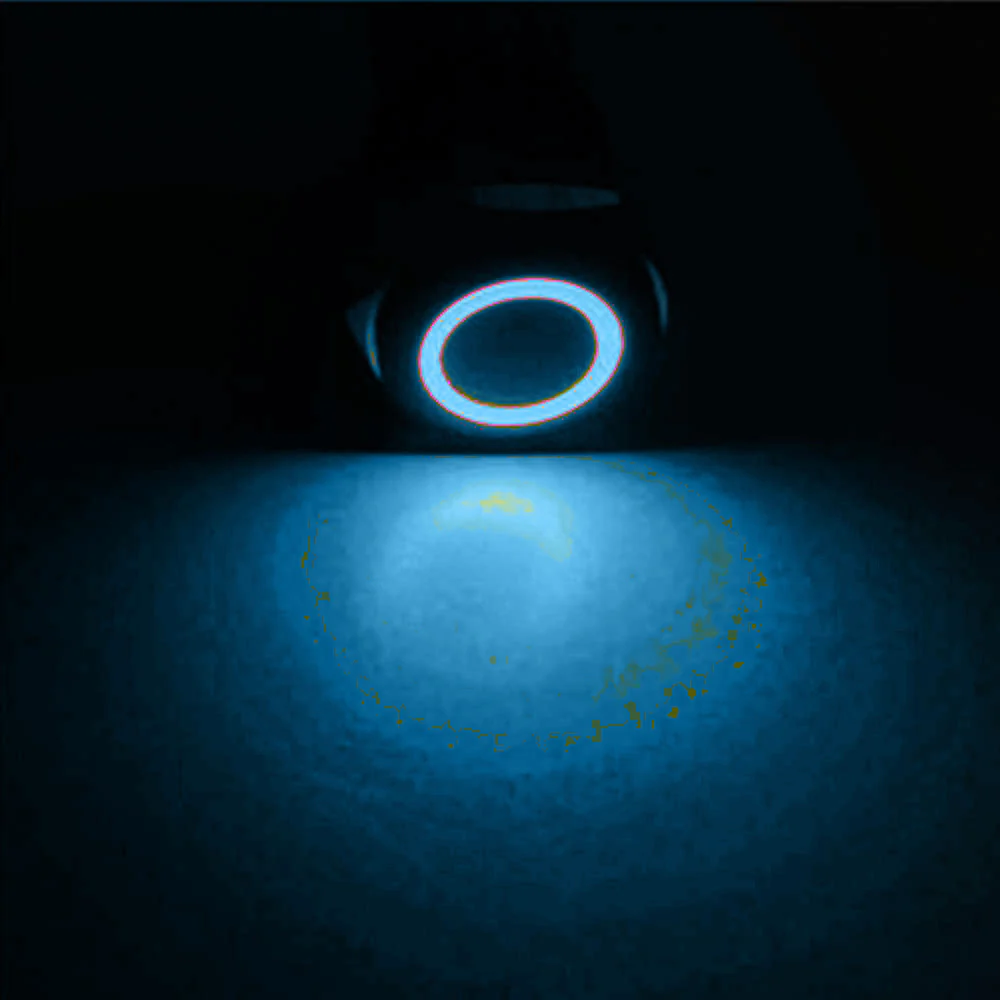

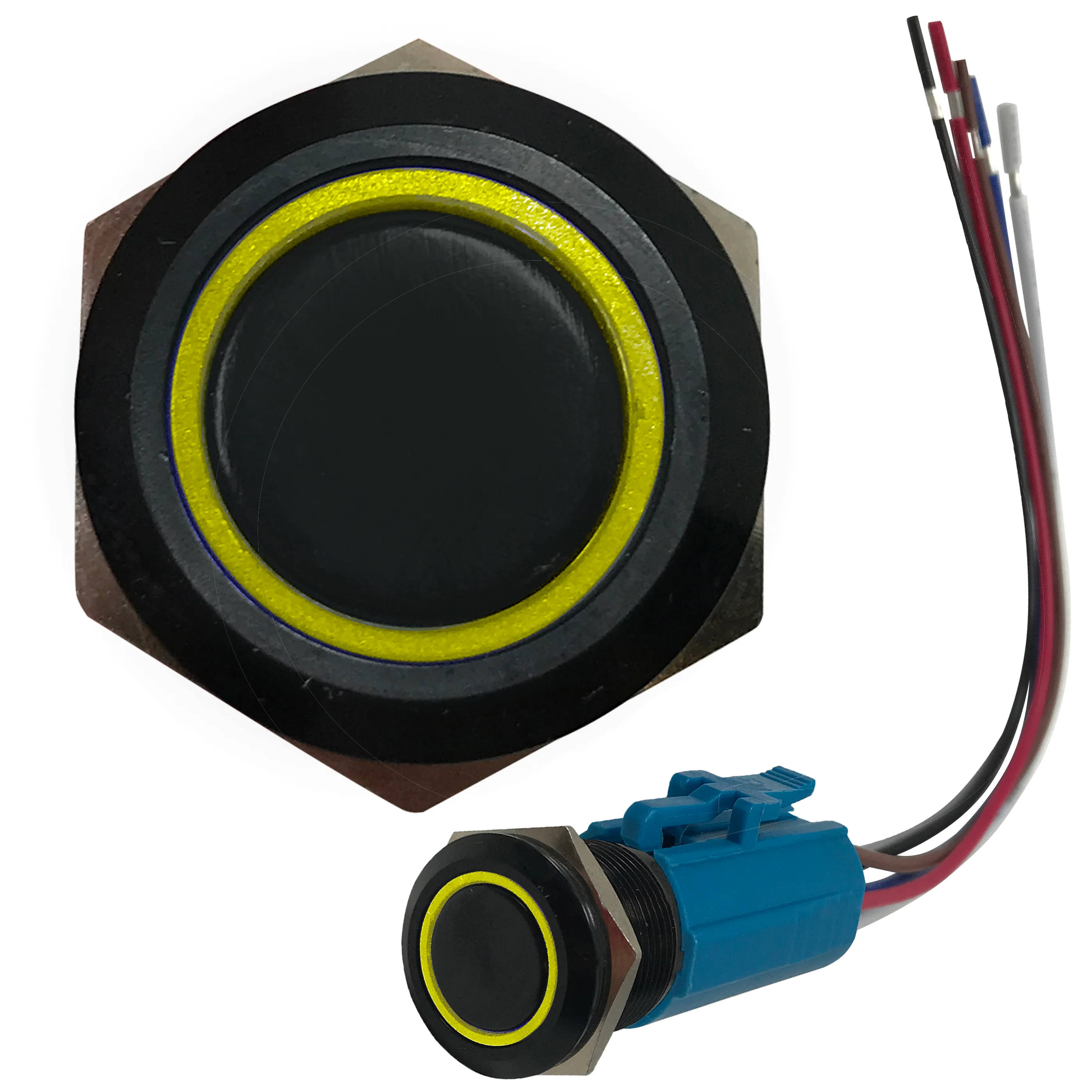

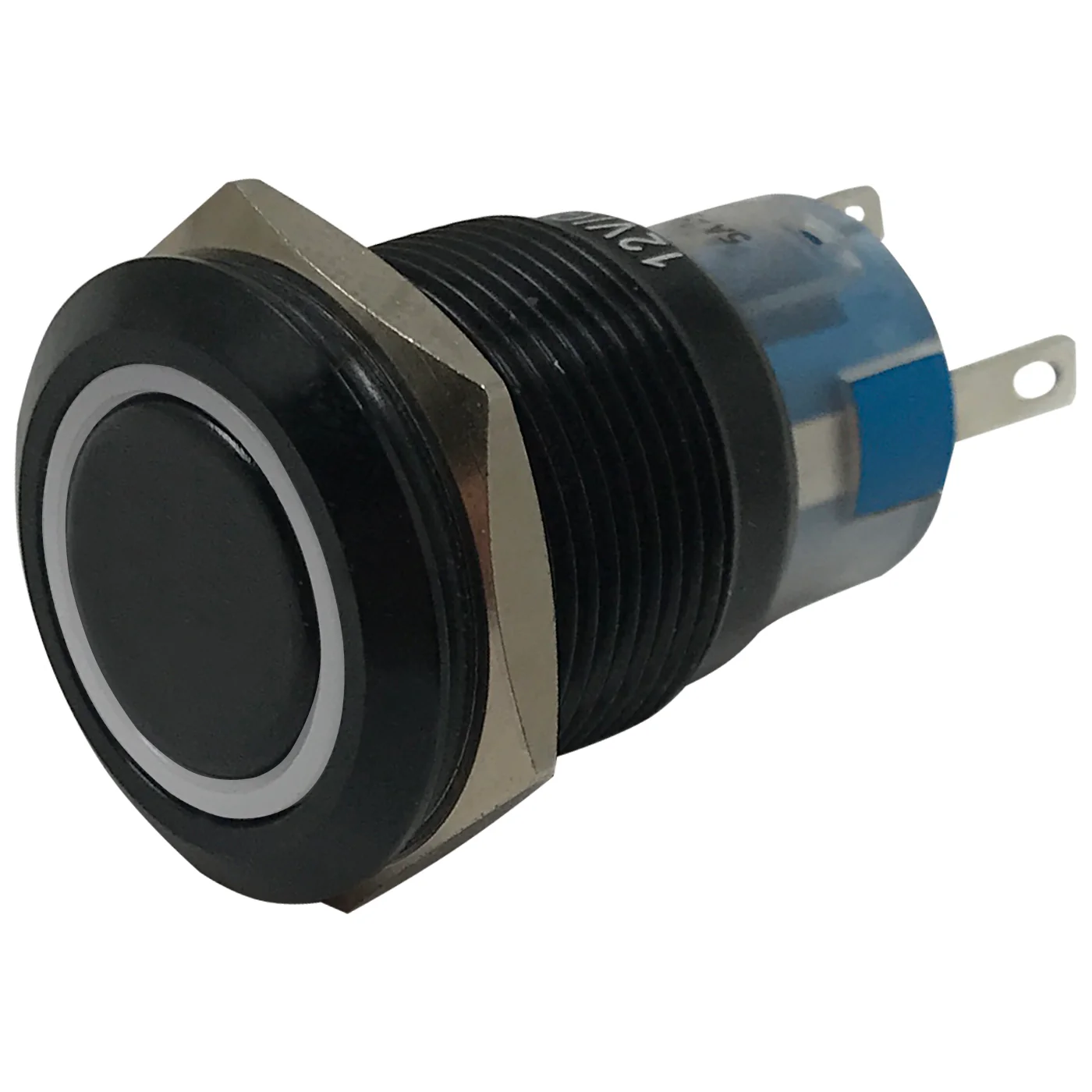

This LED latching push button switch features a rugged black metal housing and includes a pre-wired harness for easy installation. Designed for automotive and industrial 12V systems, it provides secure on/off latching functionality with clear LED status indication. The 19mm panel mount fits standard 3/4" cutouts and is IP67 rated for durability in harsh environments.

Specifications & Features

• Mounting Hole Size: 3/4" (19mm)
• Switch Type: Latching (On/Off)
• Housing: Black metal
• IP Rating: IP67 – water and dust resistant

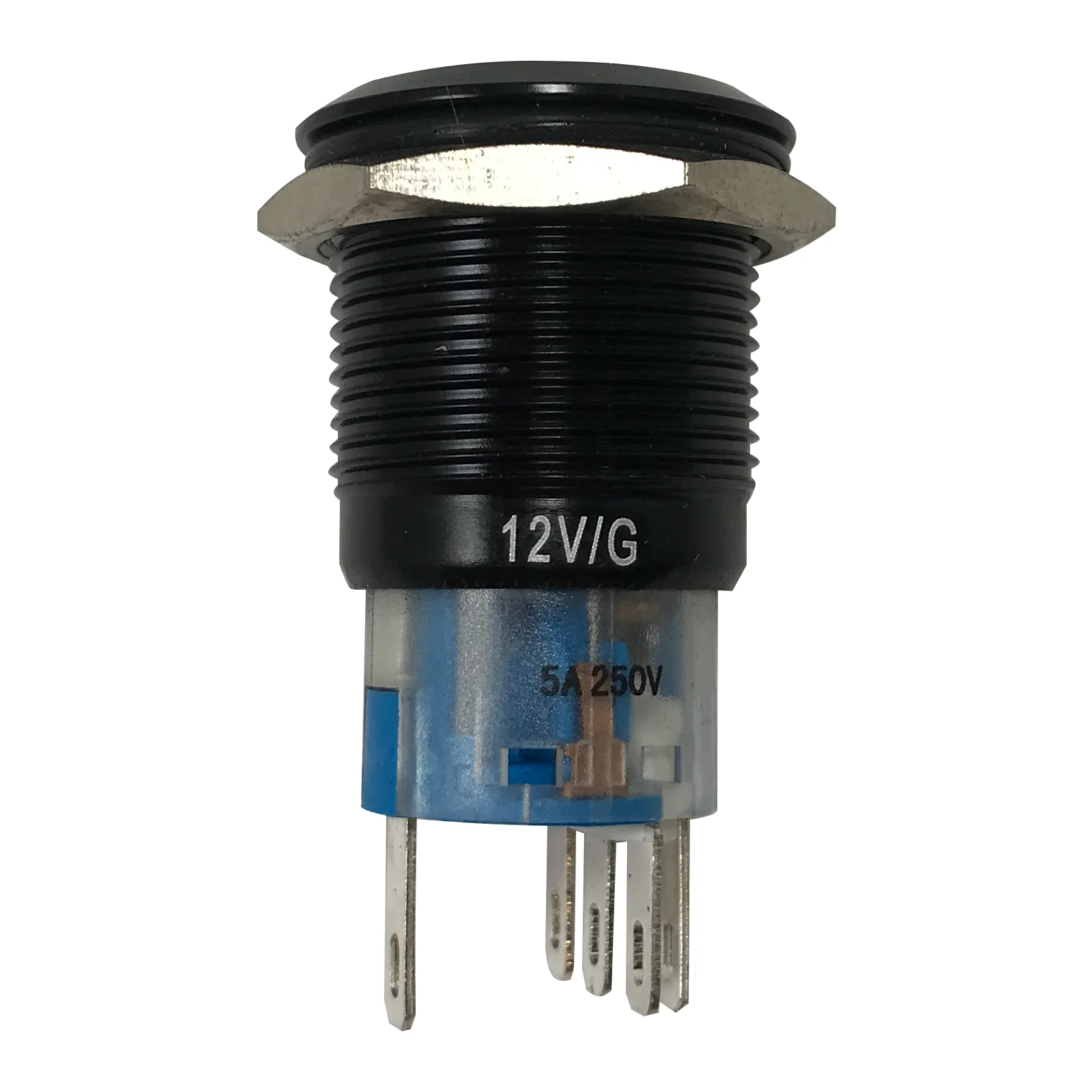

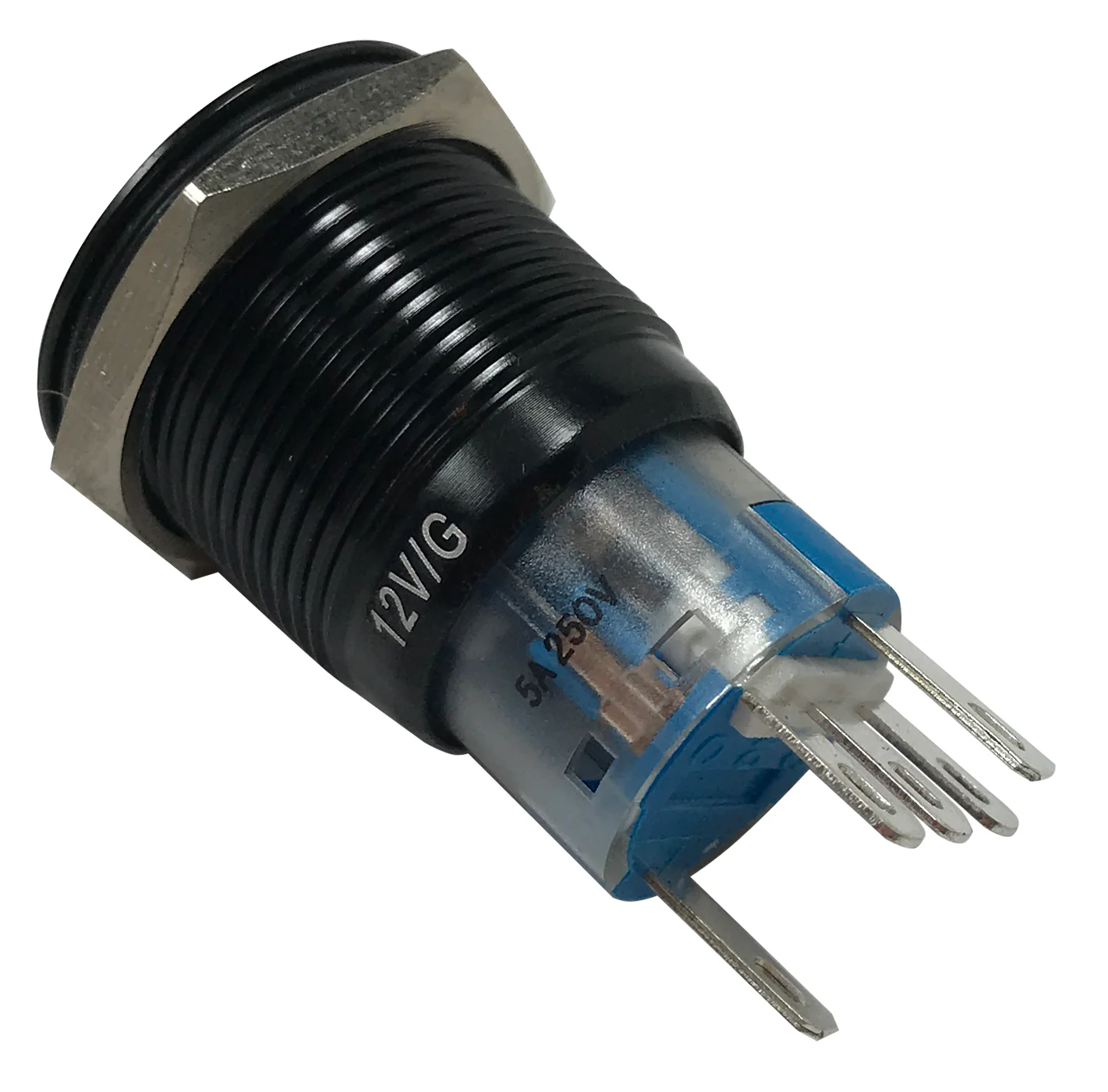

• Switch Rating: 5A @ 250VAC, 5A @ 30VDC
• LED Rating: 15mA, AC/DC 12V

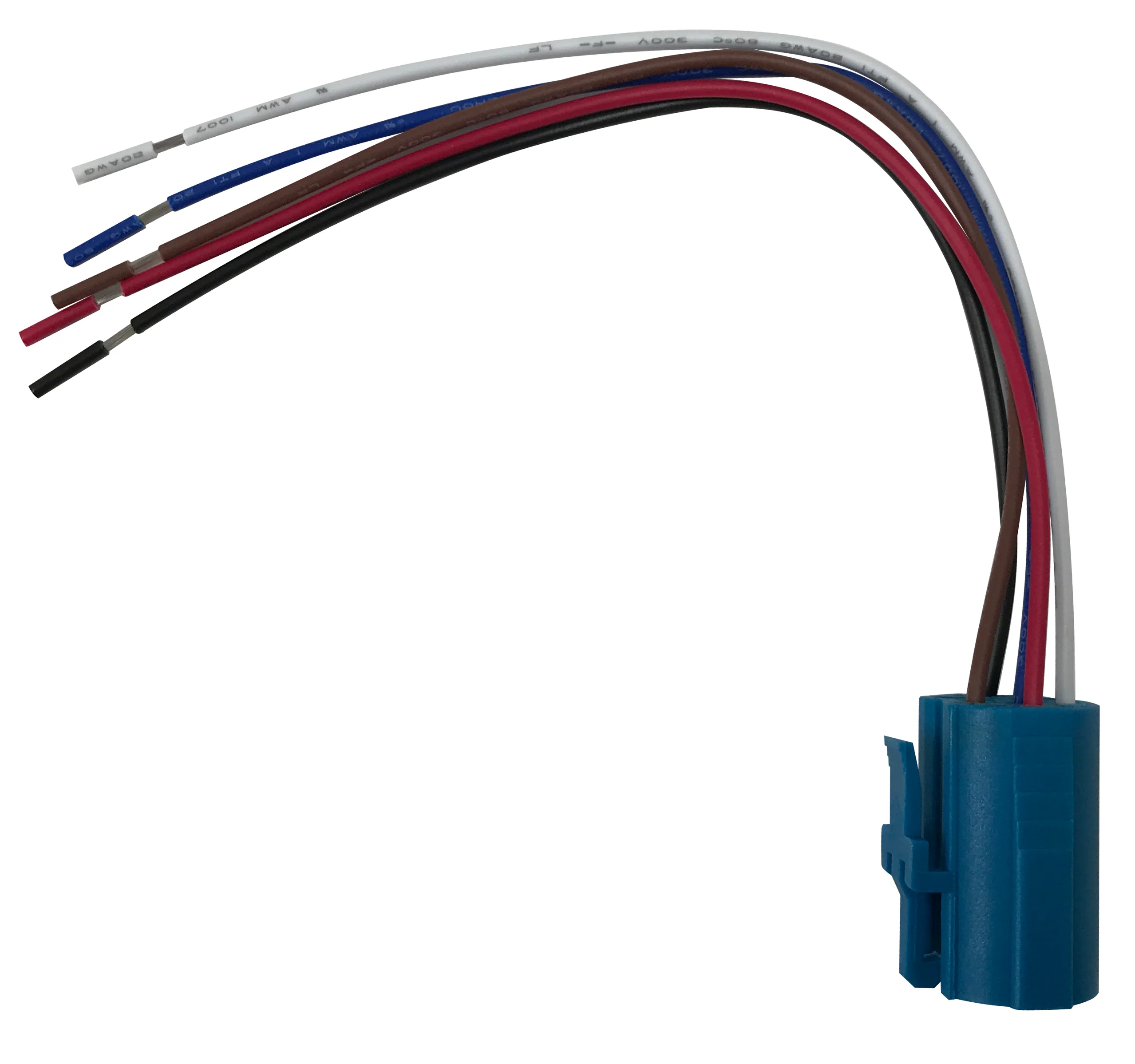

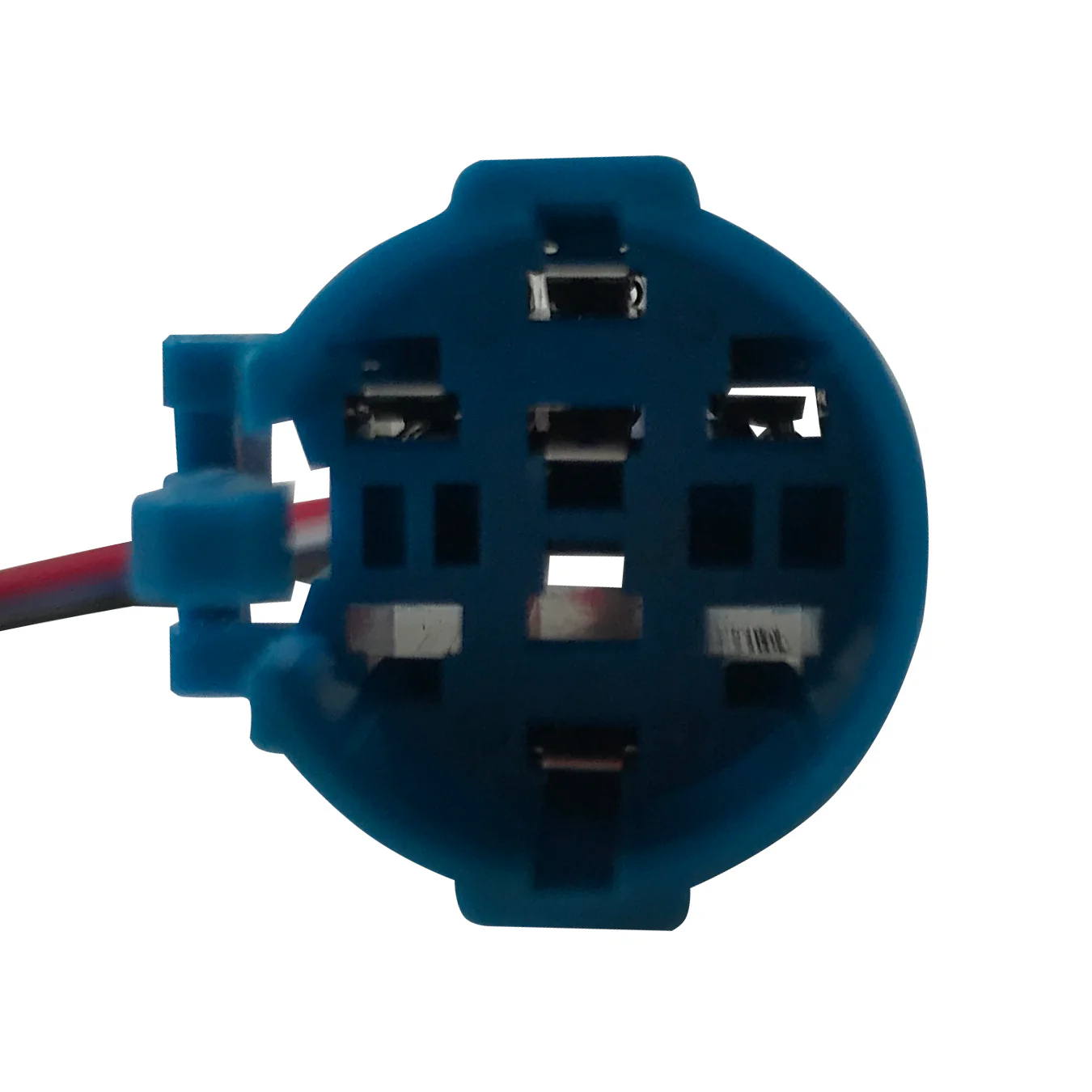

• Includes pre-wired harness for simplified installation
• Suitable for dashboards, control panels, and enclosures in automotive and equipment applications
• Available LED colors: Red, Green, Blue, White, Yellow

Wiring Guide

• Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
• Black: Connect to( -)ground. This is the (-) ground wire of the led ring
• White: Common input wire
• Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
• Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
